Keyer Priority
To Transition Between Different Keyer Priorities:
Key priority transitions use a Current priority stack and a Next priority
stack. The transition occurs between the two stacks.
1. Press the Key Prior Transition Element button in the Transition Module
(button row under status display, far left function button).
2. If not already set up, turn on the desired keys and arrange them so they
overlap, observing the Program monitor. This will make the changes in
key priority visible. For demonstration purposes, you can use four
preset pattern keys.
3. Delegate that ME for preview in the Preview button group on the
System Bar. This shows the end result of the transition (the Next
priority).
4. Go to the Keyer-Priority menu in the Menu Panel by pressing Keyer,
Priority.
5. The current stack in the menu is automatically set to what is currently
being output. You can change the Current priority stacking order if
desired, as described on
page 266.
6. Set up the Next priority stacking order, selecting the keyers in the Next
column and then using the
Top, Move Up, Move Down, and Bottom buttons
(
Figure 181). The new stack will be visible on the preview monitor.

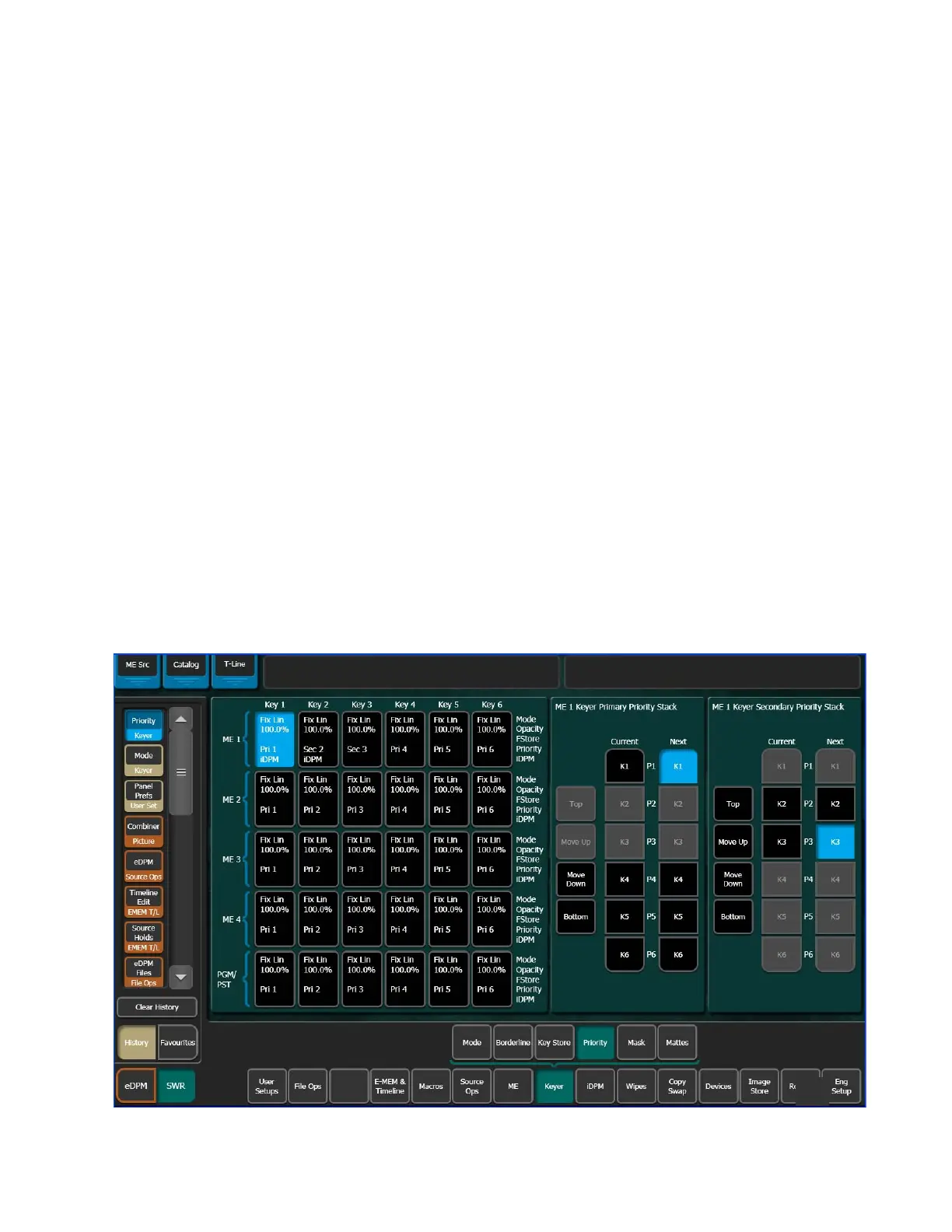

Figure 181. Keyer Priority Menu, Next Stack Selected
