384 KAYENNE — User Manual
Section 3 — System Operation

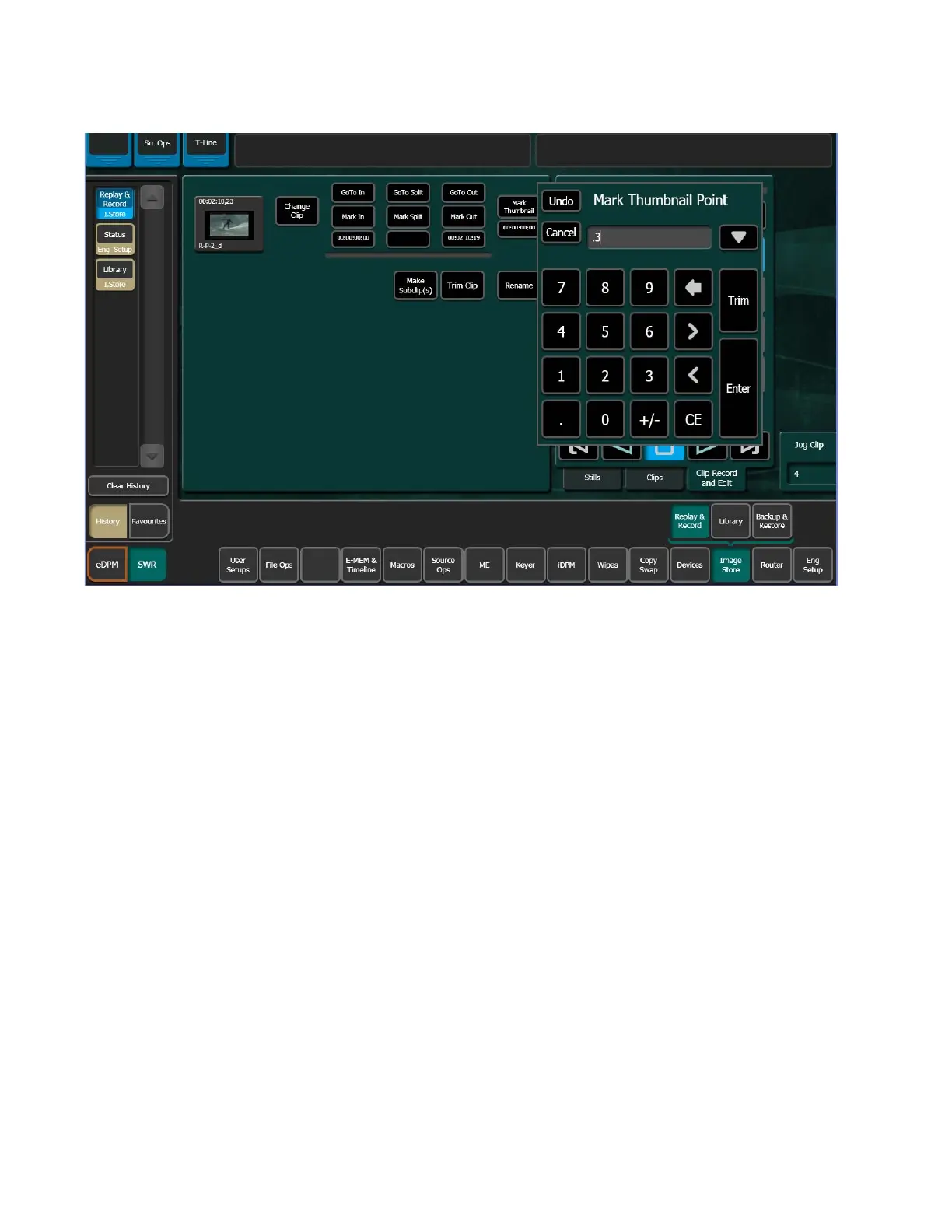

Figure 238. Mark Thumbnail Point
1. Touch the Change Clip button to select a clip to edit (unless previously
loaded,
Figure 238).
2. Either jog, shuttle, or play to the desired frame and touch the Mark
Thumbnail
button or,
3. Touch the Mark Thumbnail data pad and enter the mark point in the pop-
up Mark Thumbnail Point keypad (
Figure 238), and touch Enter.
4. Touch the Mark Thumbnail button (Figure 238).
The new thumbnail replaces the old in all views.
Trim and Remove
Material can be removed from the head of a clip to a mark-in point and
from a mark-out point to the end of a clip. Both operations can be per
-
formed on a single clip.
