KAYENNE — User Manual53
Keying

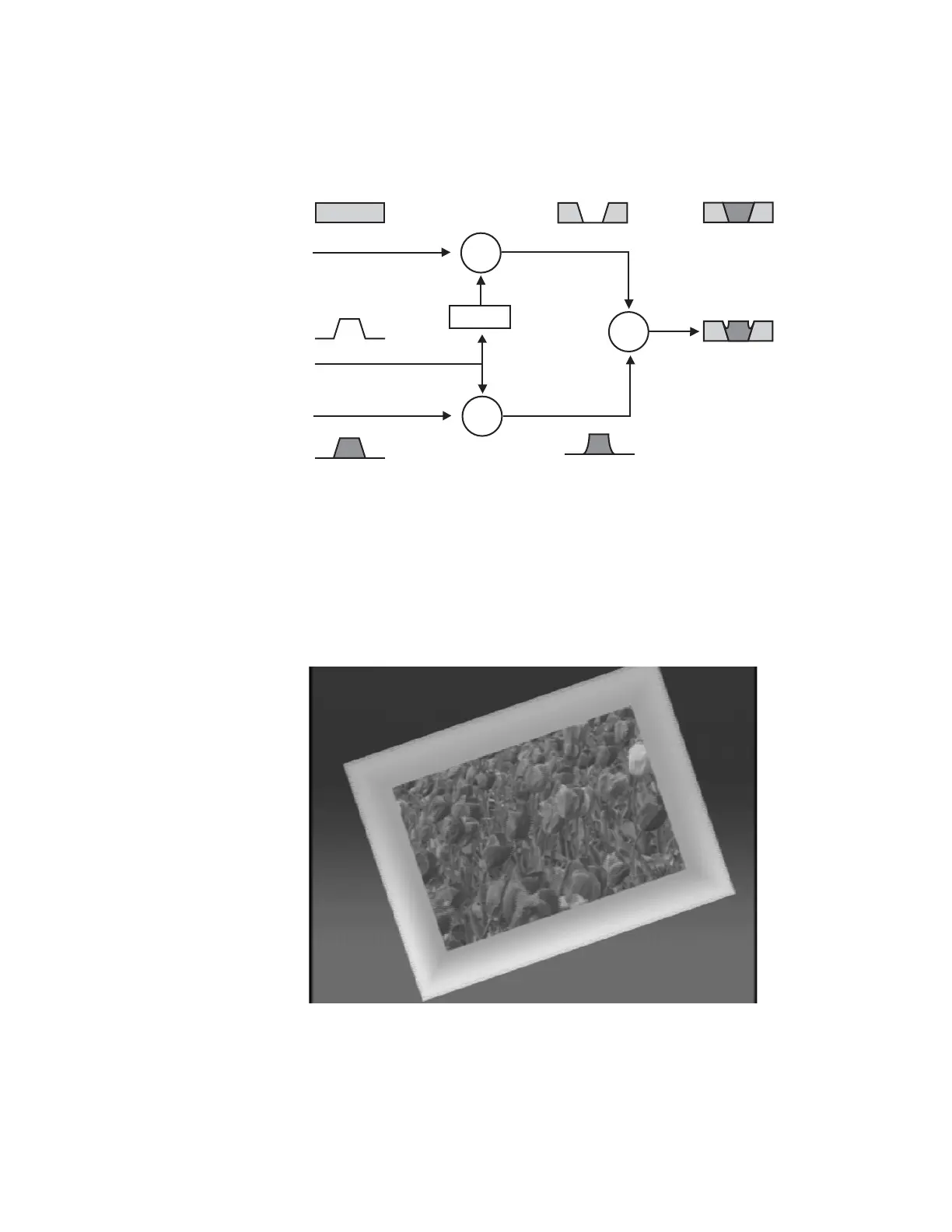

In this case the shaped input is incorrectly shaped again, sometimes called
a double-multiply (
Figure 26).
Figure 26. Incorrect Keying with Shaped Input
When the DPM provides an unshaped video output but the key is pro-
cessed as though it were shaped, excessive luminance occurs where the key
fill video and key hole edges overlap, producing a white halo around the
key (
Figure 27).
Figure 27. Incorrect Key With White Halo
In this case the unshaped video fails to be shaped at all (Figure 28)
x
+
Invert
Background Key Hole in Background
Key Control
Shaping Circuit On
Doubly-Shaped
Video
Incorrect Key
with Dark Halo
0618_00_34
Shaped
Key Fill
x
Correct Key
