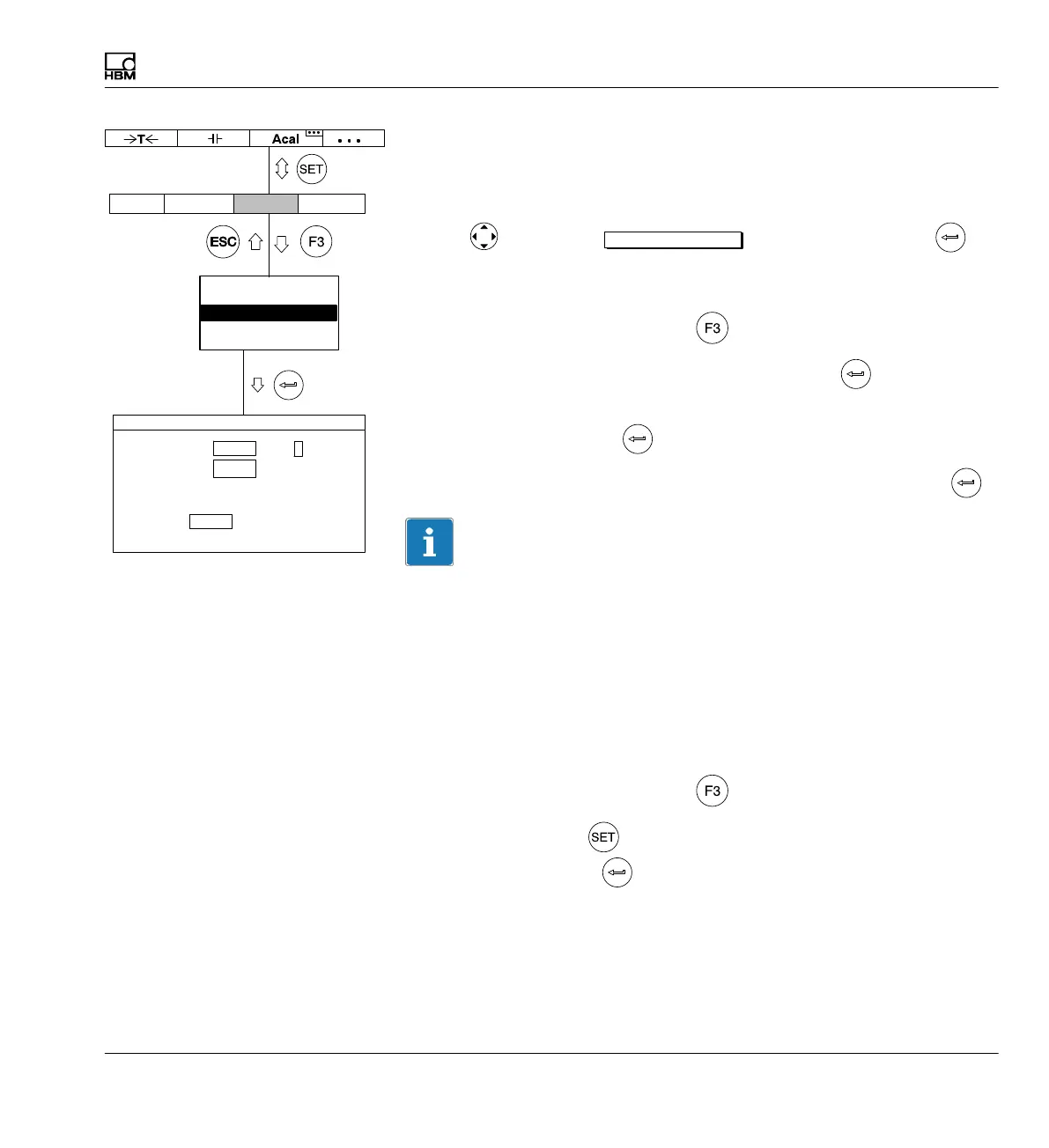

12. In the left edit field Nominal (rated) value enter the value 20.
13. In the right edit field Nominal (rated) value enter the value 10 (under
the unit mV/V).
14. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 20.
15. Go back to the pull-up menu with
.
16. In the pull-up menu select Display and confirm with
.
17. In the Decimal places edit field enter the desired number of decimal
places and confirm with .
18. In the Step selection field select the desired step and confirm with
.
Information
The step refers to the last decimal place of the display value.
Example: Entry 10.0 mm
 Step 1 means display jumps every 0.1mm
 Step 5 means display jumps every 0.5mm
Entry 10.000 mm
 Step 1 means display jumps every 0.001mm
 Step 5 means display jumps every 0.005mm
19. Go back to the pull-up menu with
.
20. Use the Switch key
to go to measuring mode and confirm the con
firmation prompt with
.
