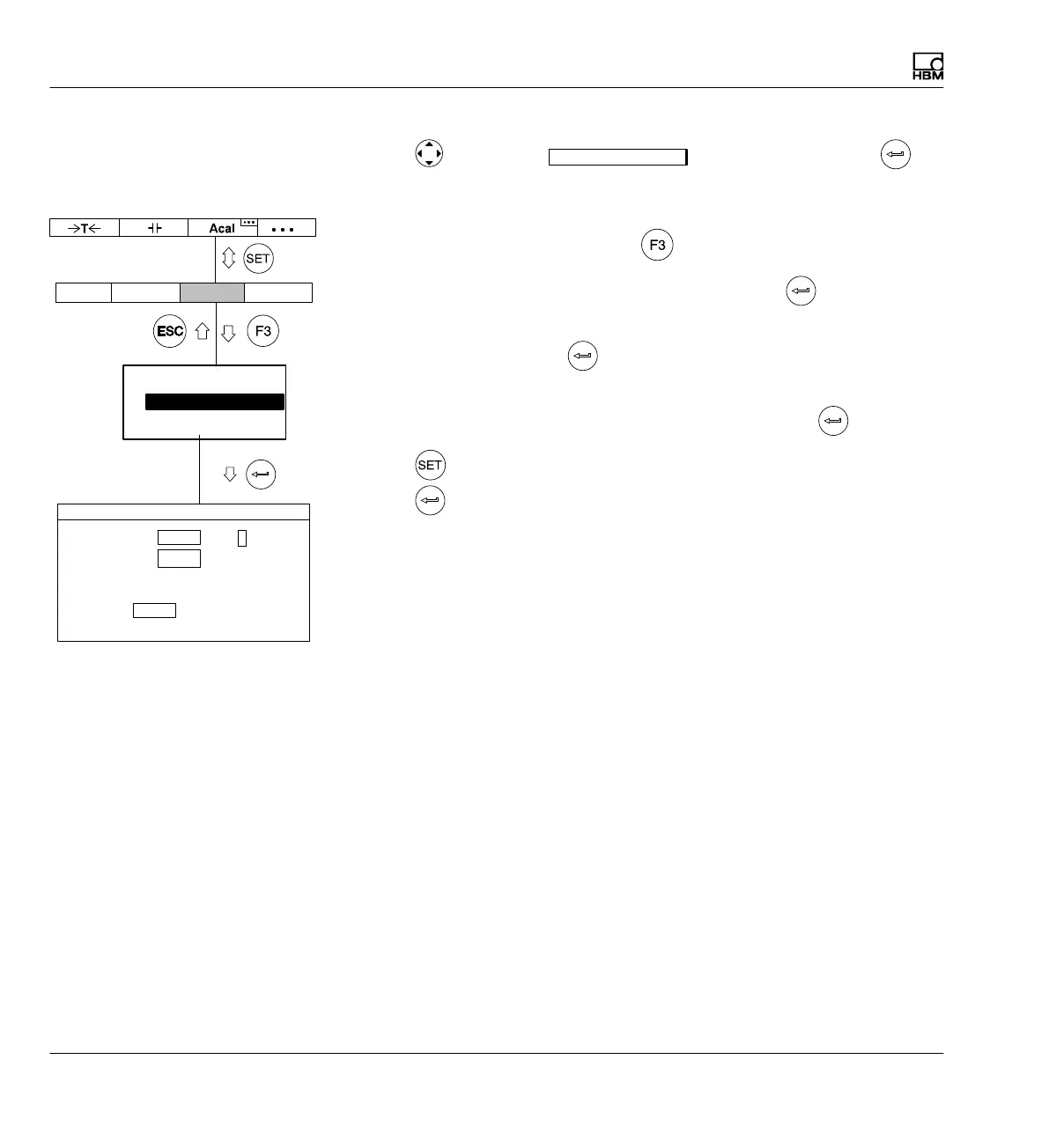

15. Use to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display, you can now
continue with step 20.
16. Go back to the pull-up menu with
.
17. In the pull-up menu select Display and confirm with
.
18. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
19. In the Step selection field choose 2 (1 pulse is equivalent to 2°; 180
pulses/revolution is equivalent to 360°) and confirm with .
20. Use
to go to measuring mode and confirm the confirmation prompt
with
.
Assign the Zero balance function to a free F-key (factory settings level
1/F1). Then return to measuring mode. If you press the corresponding
F‐key, the pulse counter is set to "0".
è See also section "Assigning
F‐keys"; page 232.
