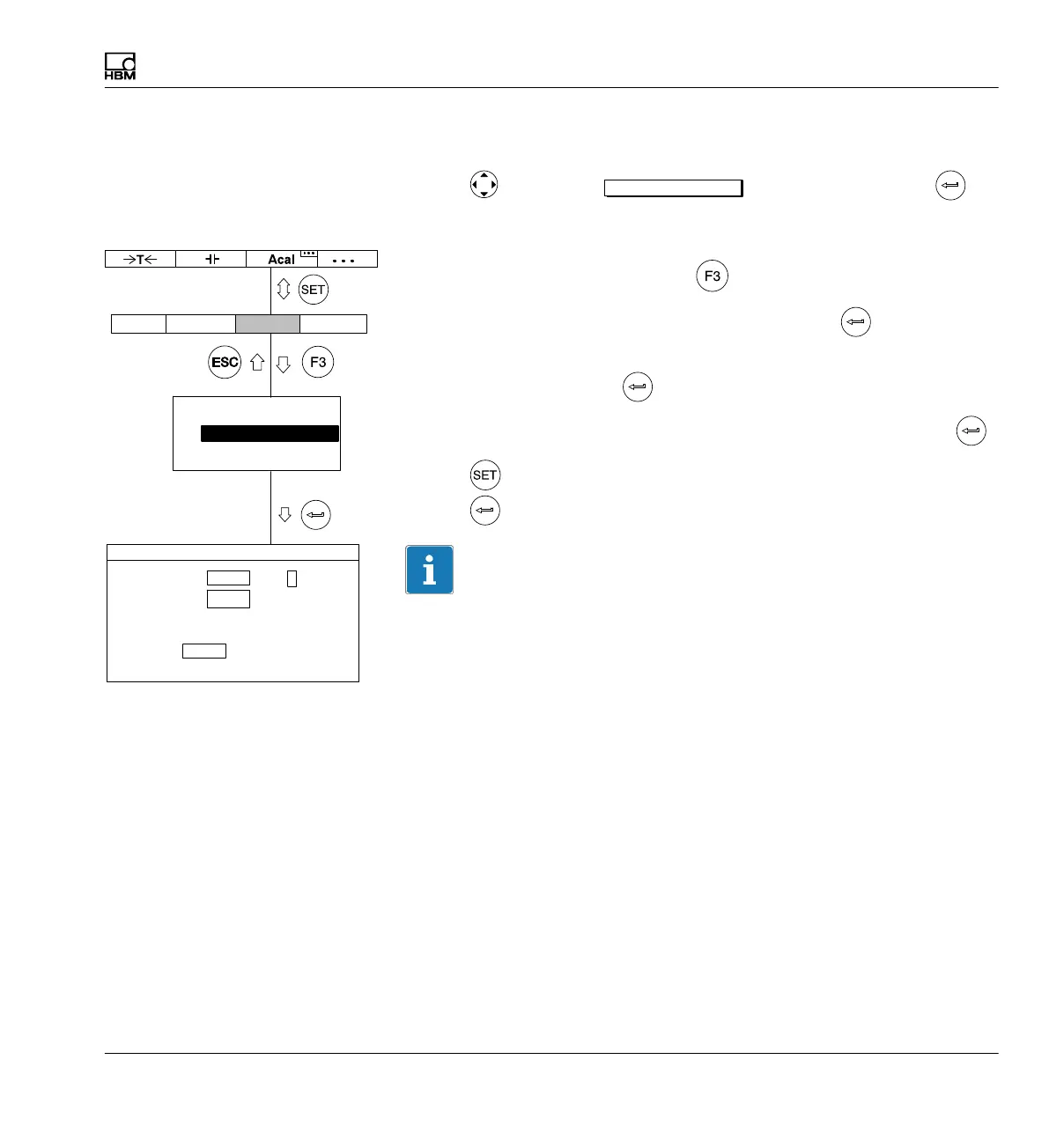

10. In the right edit field Nominal (rated) value enter the value 200.
11. Use
to select the
Adjust amplifier
button and confirm with . If
you do not want to make any more changes to the display or output
characteristics, you can now continue with step 16.
12. Go back to the pull-up menu with
.
13. In the pull-up menu select Display and confirm with
.
14. In the Decimal places edit field enter the desired number of decimal
places and confirm with
.
15. In the Step selection field select the desired step and confirm with
.
16. Use
to go to measuring mode and confirm the confirmation prompt
with
.
Information
The step refers to the last decimal place of the display value.
Example:
Entry 10.0bar
Step 1 means display jumps every 0.1 bar
Step 5 means display jumps every 0.5 bar
Entry 10.000bar
Step 1 means display jumps every 0.001 bar
Step 5 means display jumps every 0.005 bar
Unit Abs
Decimal places
Display range from
to
Step
DISPLAY CHANNEL1
100
10.000 V
−10.000 V
3 ...
V
3
AmplifierSystem Display Options
Transducer
Signal conditioning
Display
Analog outputs
Switch
