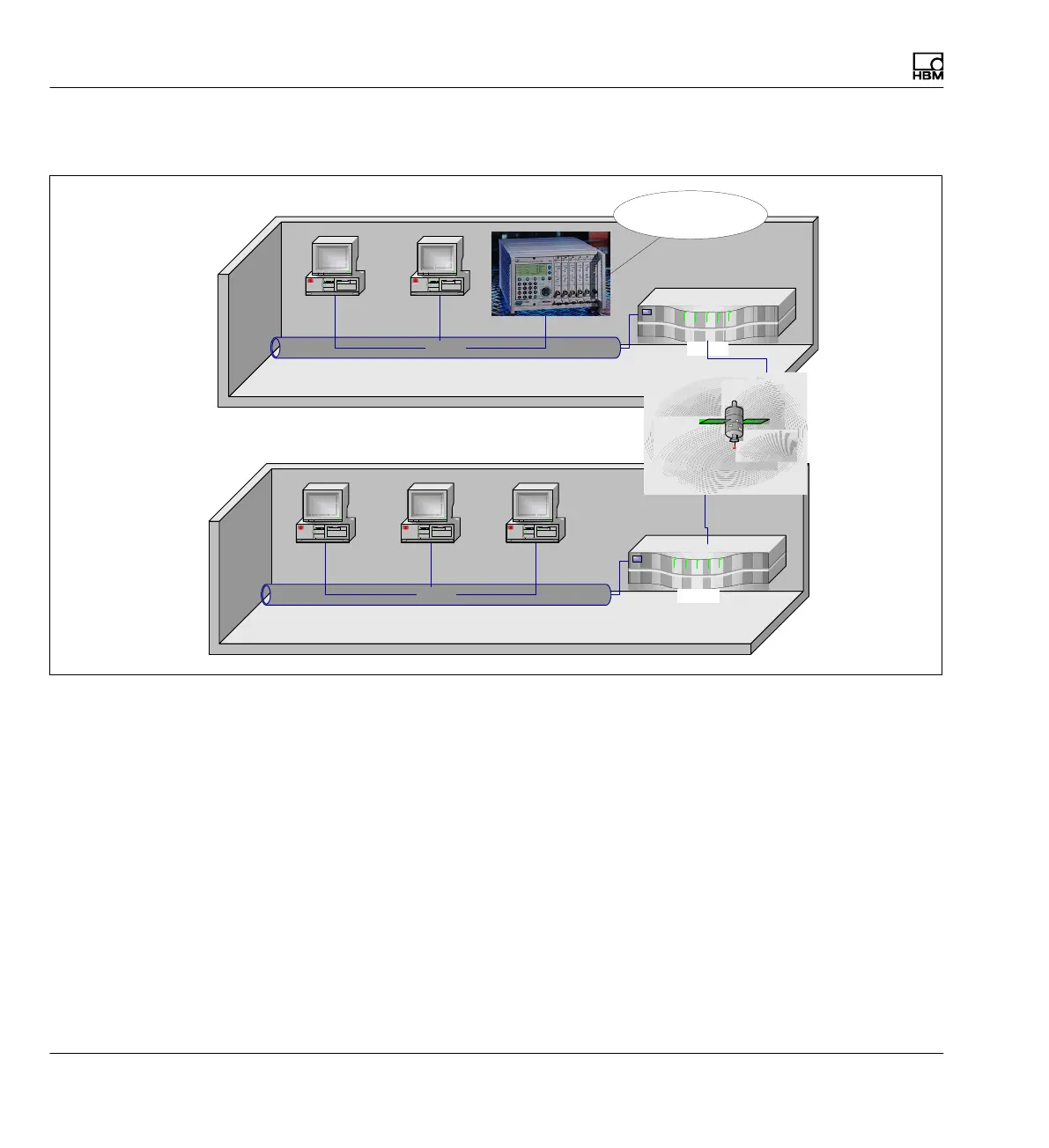

278 A0534-30.0 HBM: public MGCplus
Router
Ethernet
Computer Computer Computer
Router B
Ethernet
Computer Computer
Router A
Worldwide
IP address
Subnet mask
Router A address
If data packets are sent via node points, for example from the company
computer to the Internet or a WAN / LAN, routers are needed to distribute
the data packets in different directions based on their address.
Routers are computers designed especially for this purpose that are
equipped with their own operating system. They have the task of analyzing
millions of IP packets, reading their headers and then forwarding them on in
the right direction.
Display and control panel (AB) in computer mode
The display and control panel can be either disabled (factory settings) or
active while the computer is in operation. When its status is disabled, only
the status information and measured values are updated.
