External triggering
Remote control 7 is used as an external trigger input.
With AP01i and AP03i, jumpers can be used to adapt the filter settings of
the two analog outputs follows:

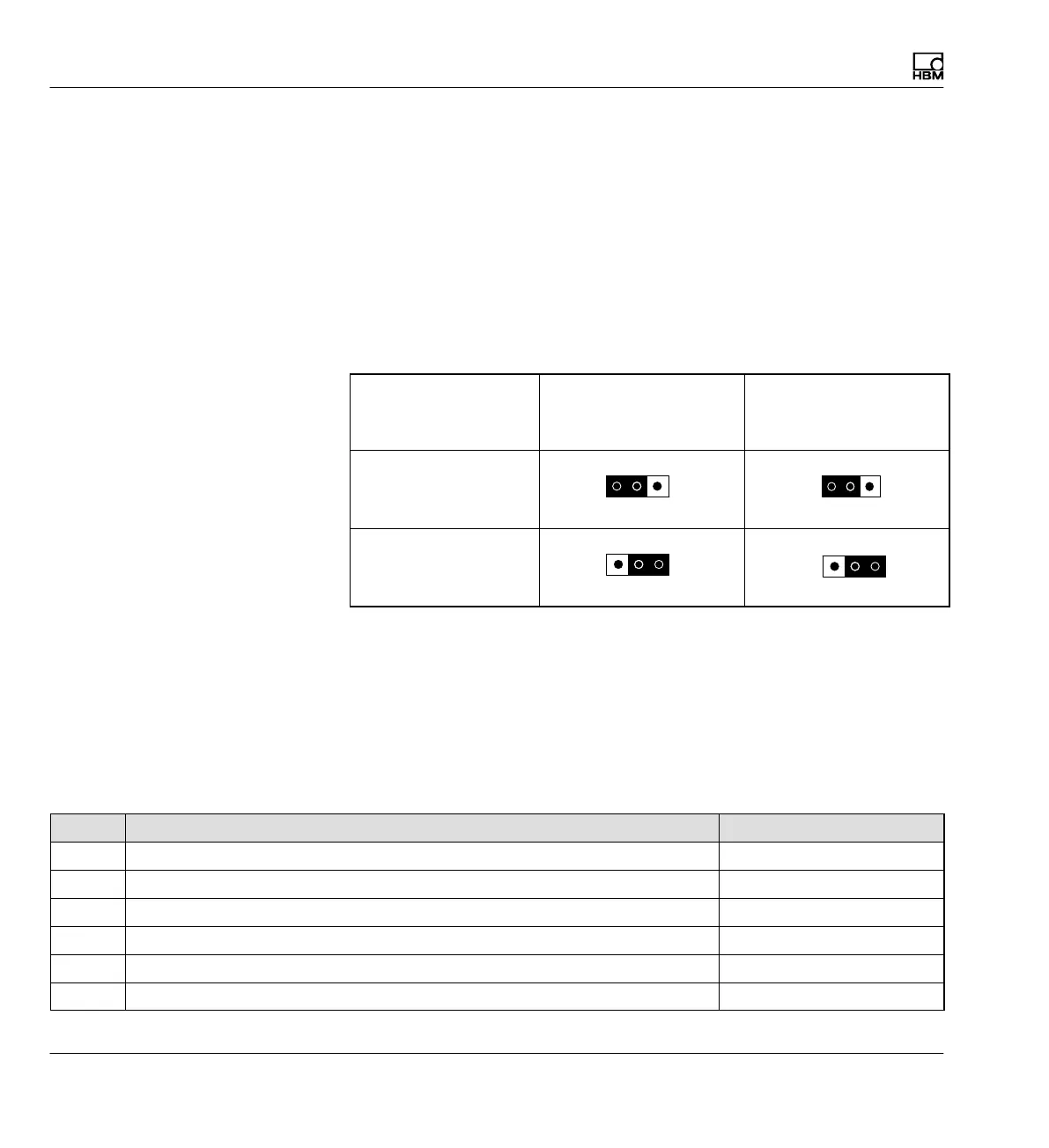

Analog output filtering
With AP01i and AP03i, jumpers can be used to adapt the filter settings of
the two analog outputs follows:
Filter
approx. 3 kHz
approx. 2. order
Analog output V
O1
Analog output V
O2
OFF
for ML10B
ST1
ST6
On
for all others MLxx
ST1
ST6
Additional instructions for AP17:
Pin assignment of the input socket
Pin Function I/O
1 Shield
2 Zero index (+) Input
3 Zero index (-) Input
4 Ground
5 Transducer supply voltage -16V (max. 500mA)
*)
Output
6 Transducer supply voltage +16V (max. 500mA)
*)
Output
