Connection
Inputs and outputs, remote controls
MGCplus A0534-30.0 HBM: public 95
Please note that the measuring systems of the digital inputs and outputs are
separated from each other.
24V

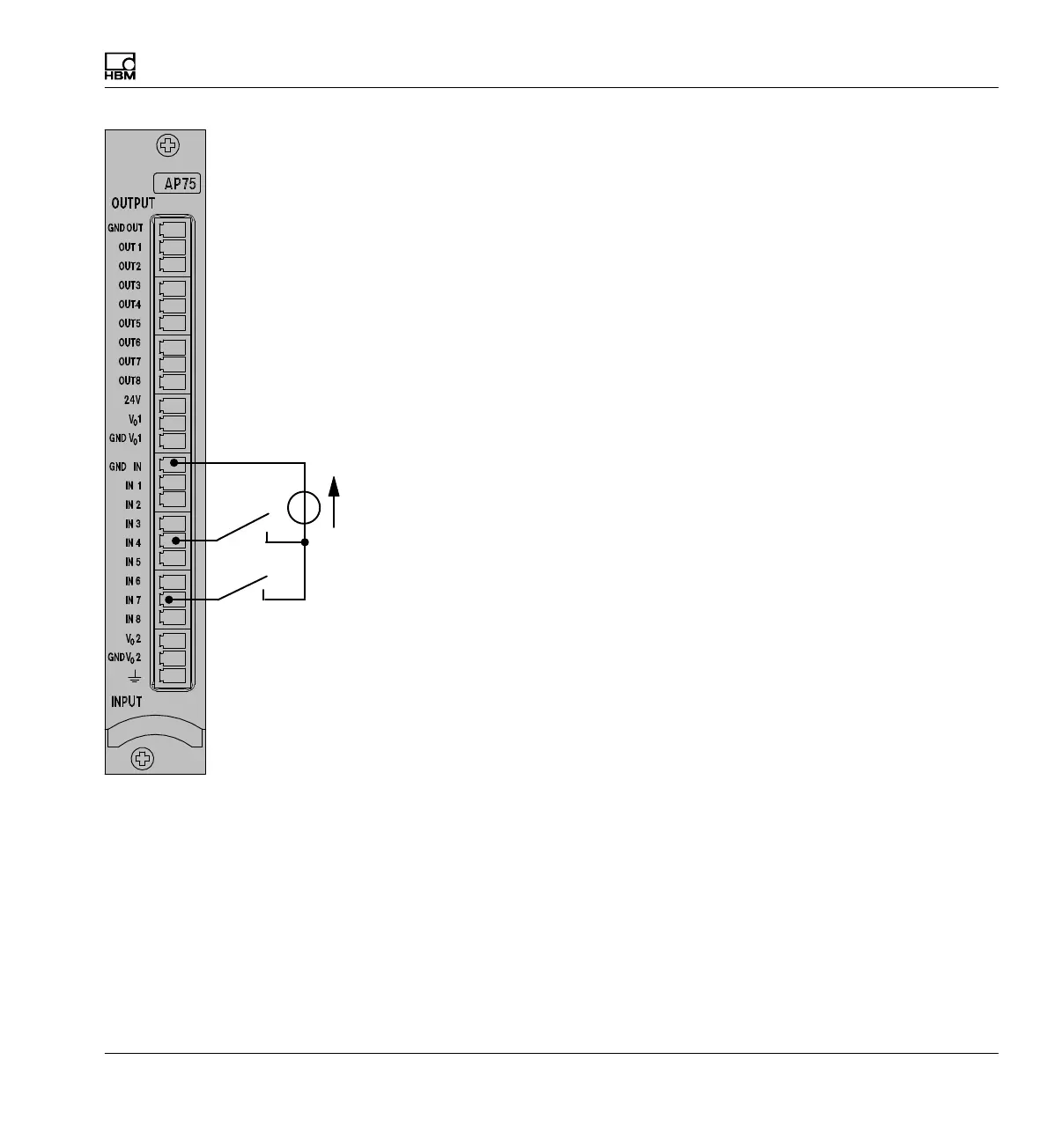

Wiring example for
use of a digital input.
(digital inputs 4 and 7
in this case)
