Connection
Inputs and outputs, remote controls
96 A0534-30.0 HBM: public MGCplus
Analog outputs V
01
and V
02
have a common ground system that is sepa
rated from the ground systems of the digital inputs and outputs.
U
OUT

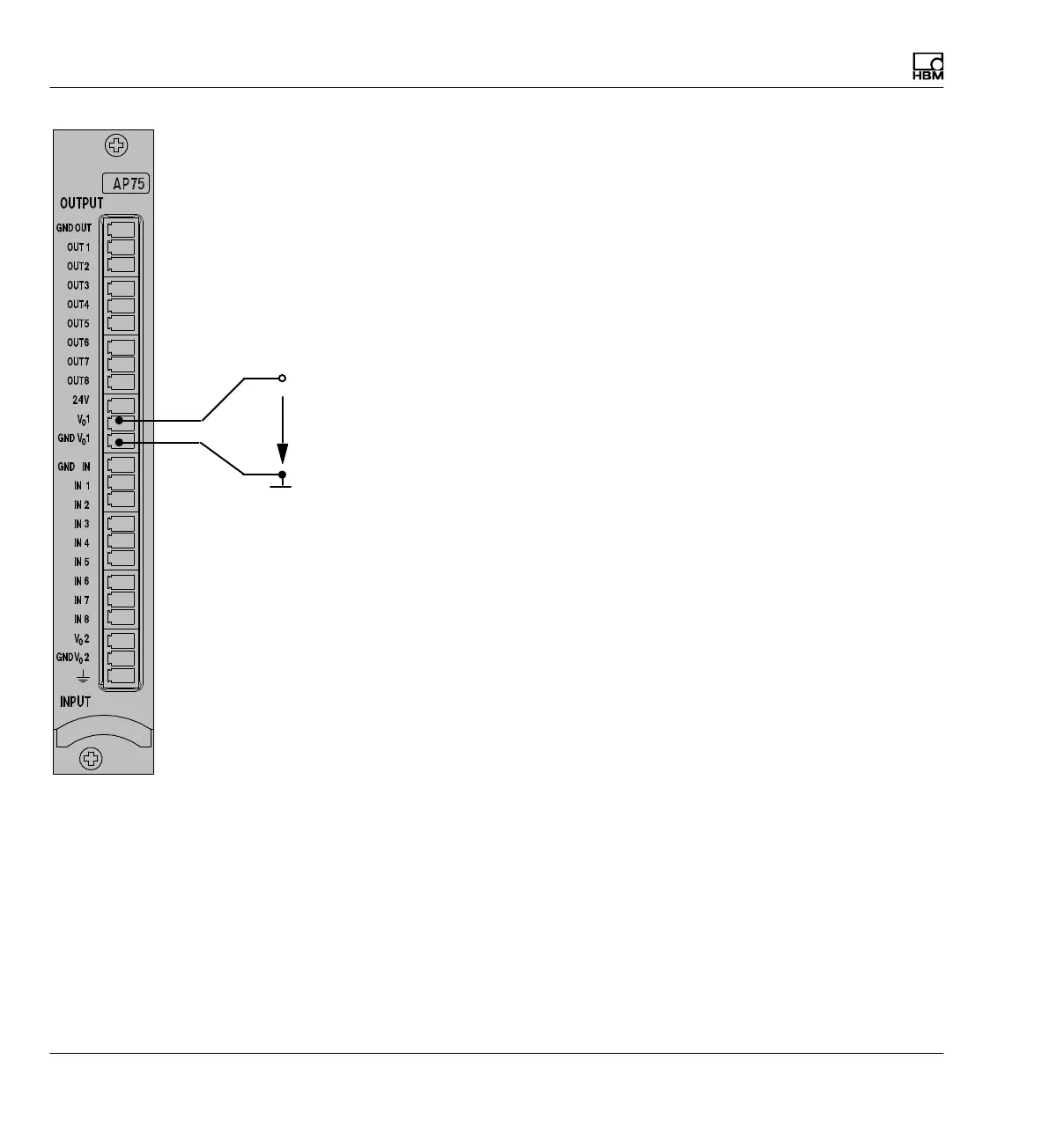

Wiring example for
using analog output
V
01
.
