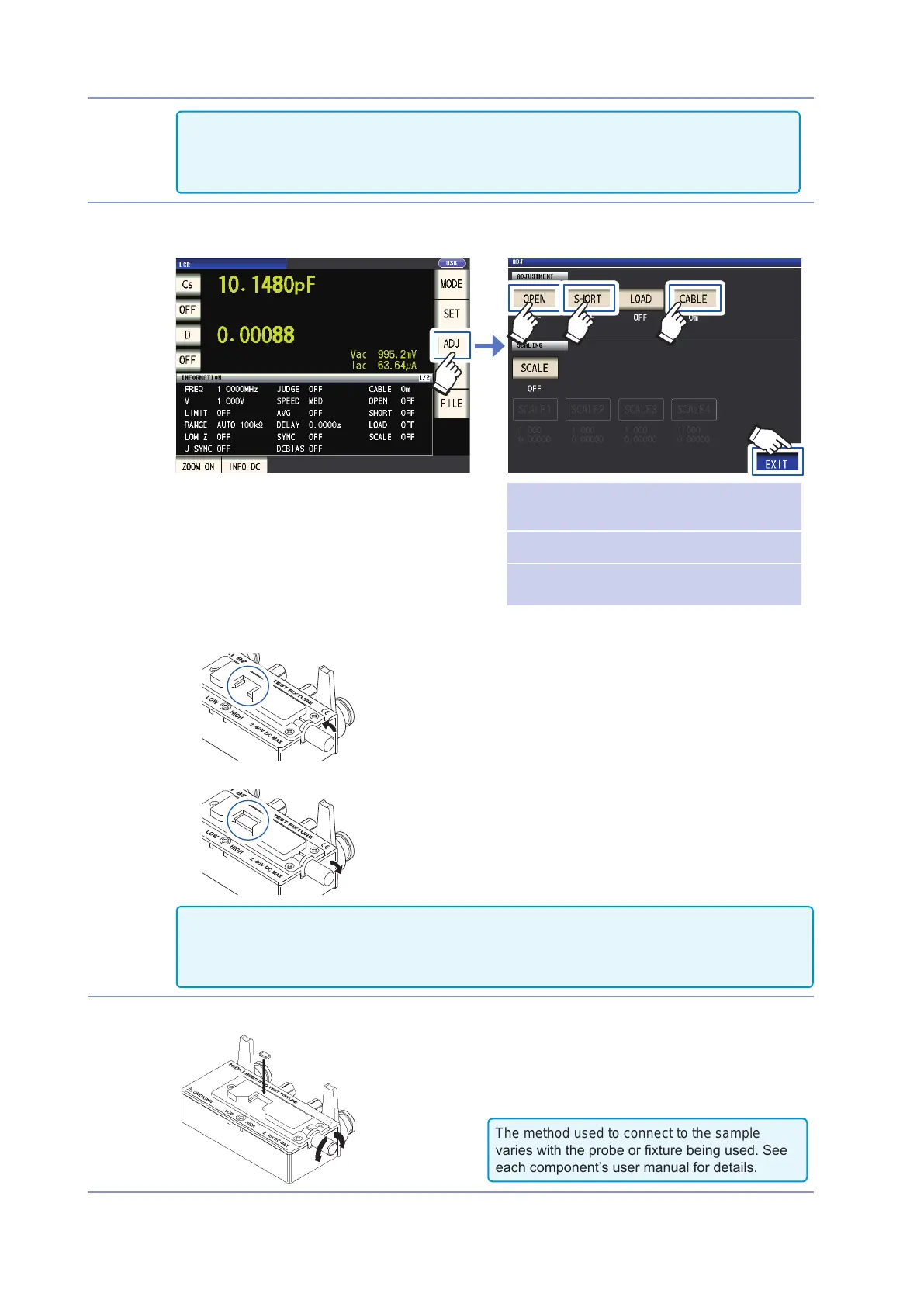

Measurement process
• To save measurement conditions internally or load previously saved measurement conditions:
“6 Saving and Loading Measurement Condition and Correction Value Data” (p. 123)
• To perform DC (DC resistance) measurement: “3.4 Setting Measurement Conditions (basic set-
tings)” (p. 43)
9
Wait at least 60 minutes after turning on the instrument and then perform correction.
1. Press the ADJ key.
CABLE
“5.1 Setting the Cable Length (Ca-
ble Length Correction)” (p. 98)
OPEN
“5.2 Open Correction” (p. 99)
SHORT
“5.3 Short Correction” (p. 105)
1
5
23 4
2. Set the cable length (for the 9263, use a setting of 0 m).
3. Place the 9263 SMD Test Fixture in the open state and perform open correction.
4. Place the 9263 SMD Test Fixture in the shorted state and perform short correction.
• To save measurement conditions internally or load previously saved measurement conditions: “6
Saving and Loading Measurement Condition and Correction Value Data” (p. 123)
• The open state and shorted state vary with the probe or xture being used. (p. 2)
For more information, see each component’s user manual.
10
Connect the test sample to the 9263 SMD test xture.
The method used to connect to the sample
varies with the probe or xture being used. See
each component’s user manual for details.
