7
Measurement process
7

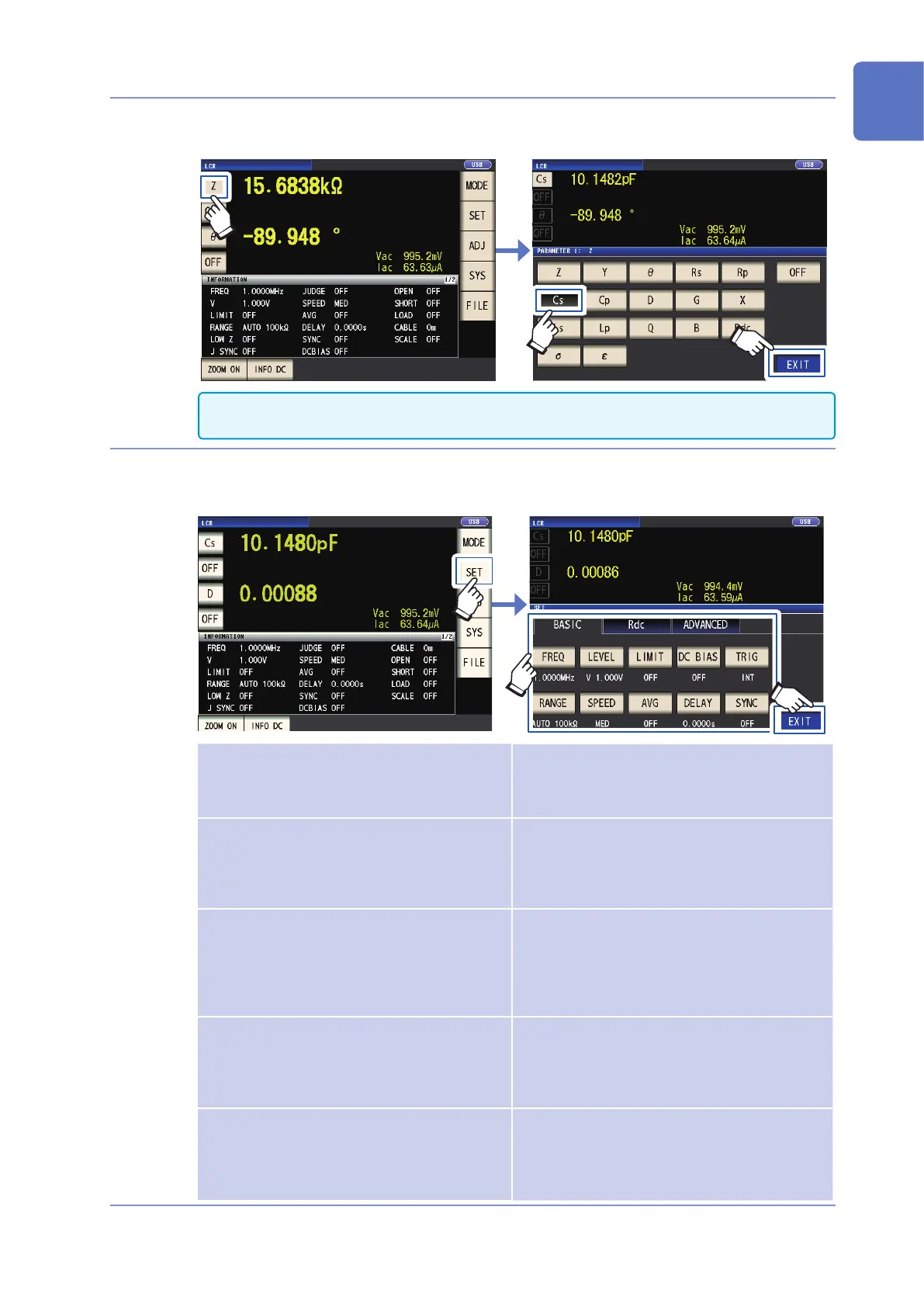

Set the rst parameter to Cs and the third parameter to D. (p. 39)
Example: Set the rst parameter to Cs
1
3
2
When you wish to perform DC in addition to AC measurement, set the parameter to Rdc.: “To per-
form DC measurement (DC resistance measurement)” (p. 40)
8
Set the measurement conditions.
Press the SET key, select the BASIC tab, and congure the settings as desired. (The numbers under-
neath the buttons indicate the default settings.)
1
3
2
FREQ
Measurement frequency: 1.0000 kHz
(p. 44)
(Required: congure based on the
measurement sample.)
AVG
Average: OFF (p. 56)
(Optional: Set to ON when you wish to
prevent instability in the display value.)
RANGE
Measurement range: AUTO (p. 45)
(Required: congure based on the
measurement sample.)
DC BIAS
DC bias: OFF (p. 59)
(Optional: Set to ON when you wish
to superimpose the DC voltage on the
measurement signal during capaci-
tance measurement.)
LEVEL
Measurement signal mode:
Open circuit voltage (V) mode
Measurement signal level: 1.000 V
(p. 49)
(Required: congure based on the
measurement sample.)
DELAY
Trigger delay: 0.0000 s (p. 63)
(Optional: If the trigger synchronous
output function is enabled, set to a
large enough value that measurement
can stabilize.)
SPEED
Measurement speed: MED (p. 54)
(
Optional: Change this setting when
you wish to perform measurement
more quickly or at a higher level of
precision.)
TRIG
Trigger: INT (p. 62)
(Optional: Set to EXT when you wish to
input the trigger manually, using EXT I/O,
or using the interface.)
LIMIT Voltage and current limit
: OFF
(p. 58)
(Optional: Set to ON when you wish
to limit the voltage or current that is
applied to the sample.)
SYNC
Trigger synchronous output function:
OFF (p. 64)
(Optional: Change the setting when
you wish to apply the signal to the
sample during measurement only.)
10
9
8
7
6
5
4
3
2
1
