76
Judging Measurement Results

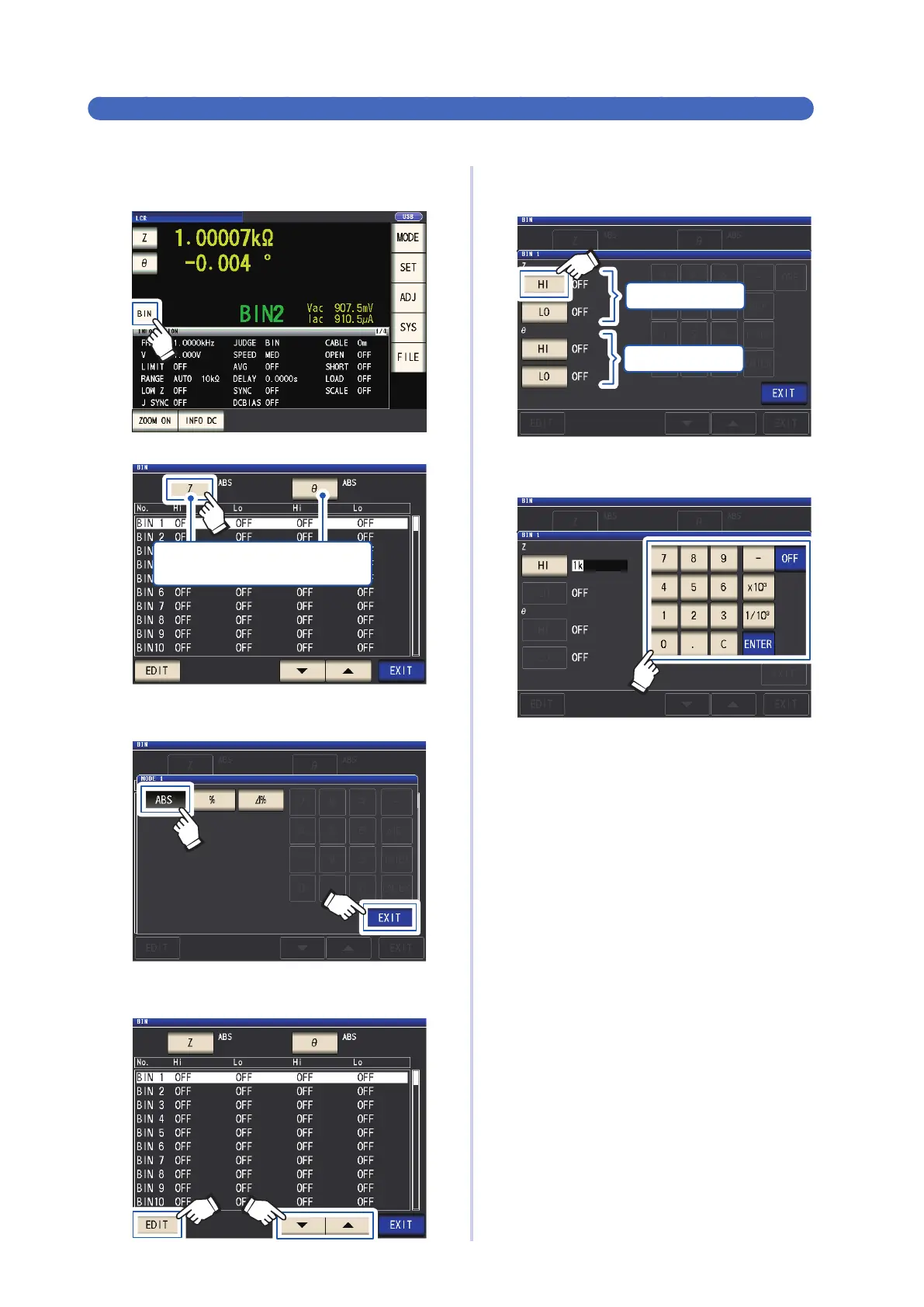

Absolute value setting
Set the value after setting the judgment mode (p. 69) to BIN.
1
Touch the BIN key on the measurement
screen.
2
Touch the Z key.
The key display differs depending
on the measurement parameter
3
Touch the ABS key and then touch the
EXIT key.
2
1
4
Use the  key to select the BIN num-
ber to set, and touch the EDIT key.
1
2
5
Touch the HI key for the No. 1 param-
eter.
No. 1 parameter
No. 3 parameter
6
Enter the upper limit value with the nu-
meric keypad.
Settable range: -9.99999 G to 9.99999 G
When you do not want to set the upper and
lower limit values, touch the OFF key.
7
Touch the ENTER key to conrm the up-
per limit value.
The display will return to the screen shown
in step 5.
8
Touch the LO key for the No. 1 parameter,
set the lower limit value with the numeric
keypad, and then touch the ENTER key.
Settable range: -9.99999 G to 9.99999 G
The display will return to the screen shown
in step 5.
9
Using the same procedure, set the up-
per and lower limit values for the No. 3
parameter.
10
Touch the EXIT key twice.
Displays the measurement screen.
