D1-N Series Servo Drive User Manual Servo Drive Configuration
5-12 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906

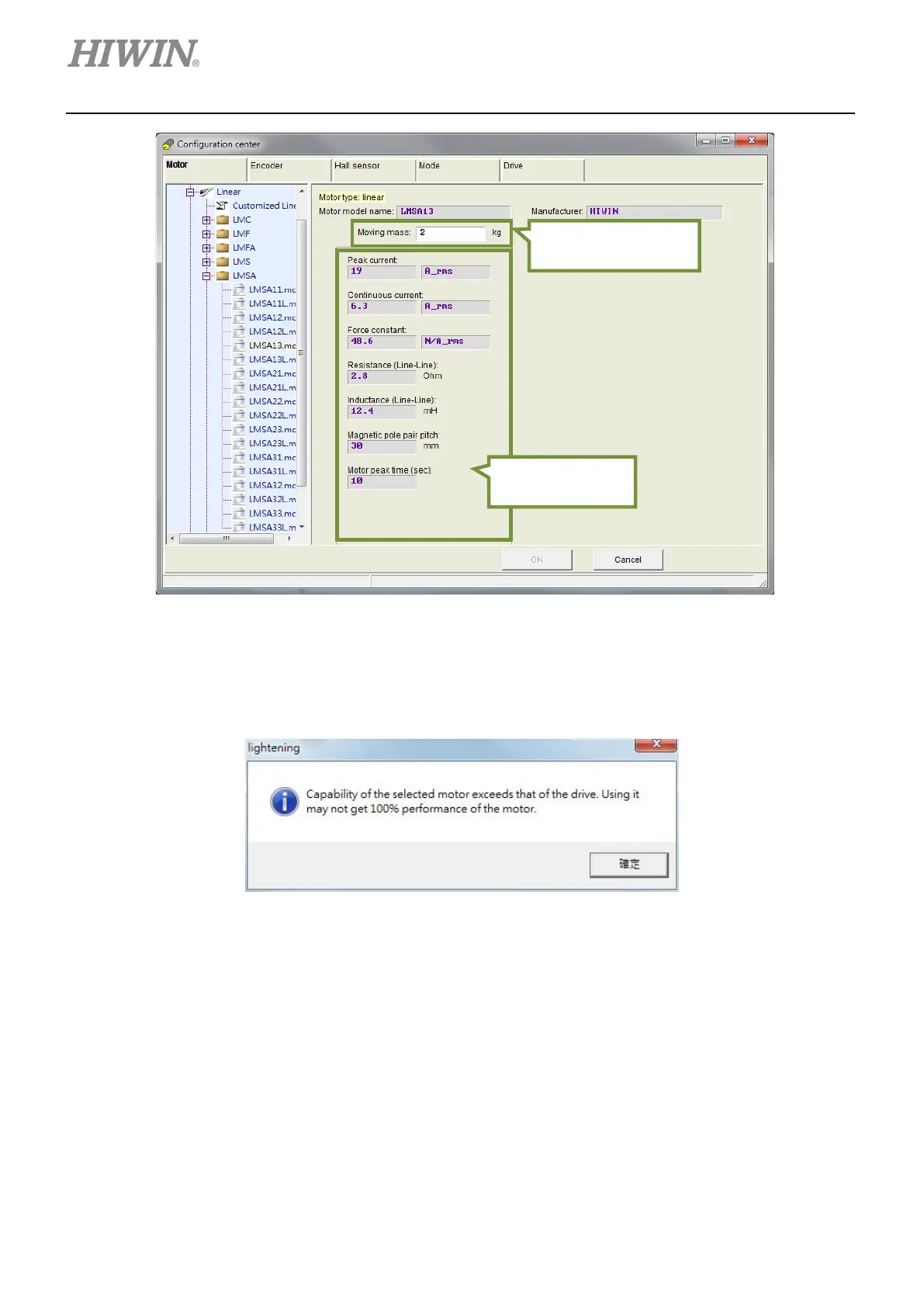

Figure 5.2.1.2
Note:
If the peak current of the selected motor exceeds the peak current of the servo drive, a warning dialog will appear to
inform users that the motor may have a weaker performance.
Figure 5.2.1.3
(3) Torque motor
A. Motor parameters
Select the model of HIWIN torque motor to display and set motor parameters.
B. Operation parameters
 Total moment of inertia
Moment of inertia of torque motor (rotor included)(Unit: Kg*m
2
)
 Belt feed constant
Linear movement per motor revolution (Unit: mm/rev)
Operation parameter
setting area
Motor parameter
setting area
