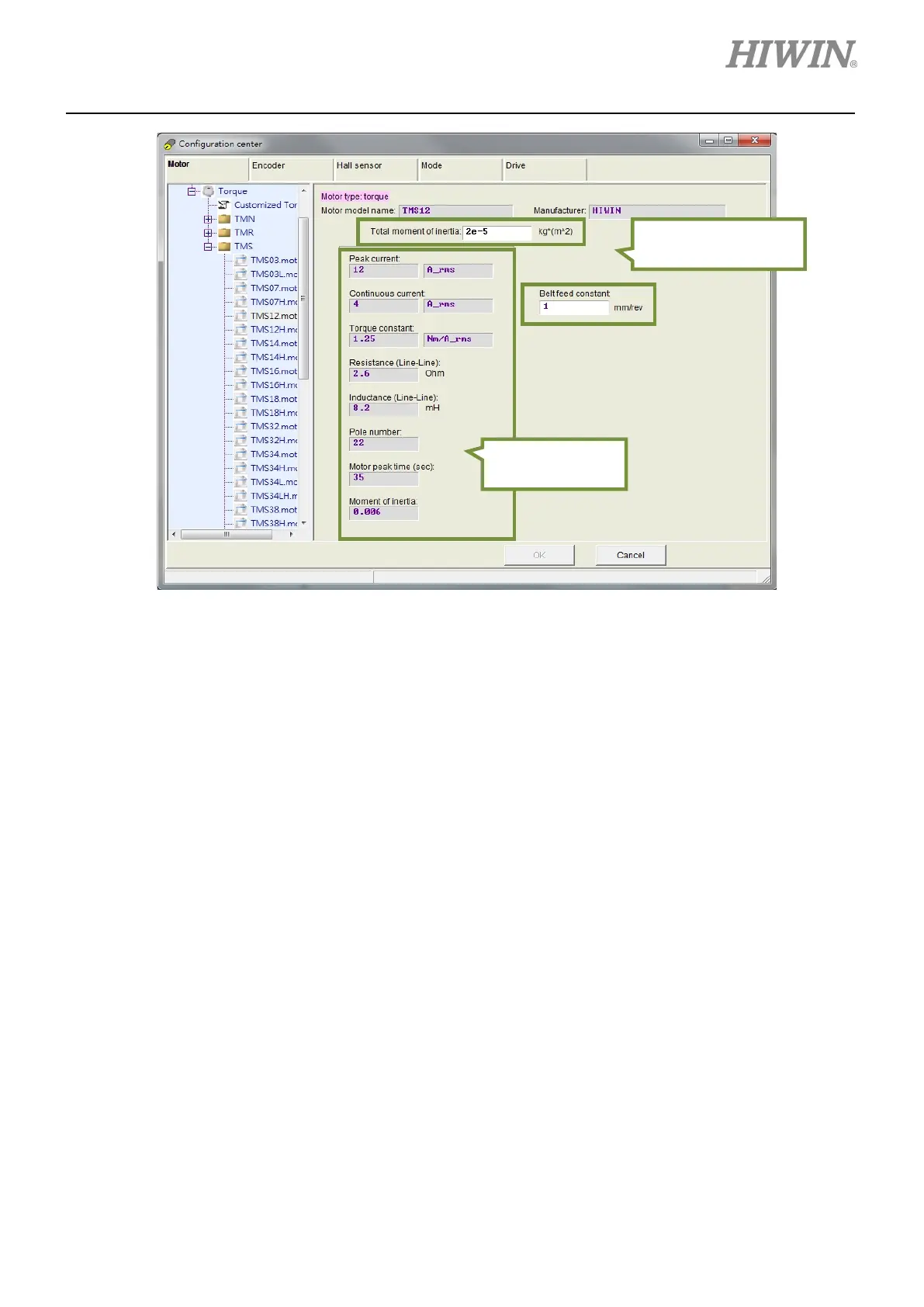

Figure 5.2.1.4
(4) Customized motor
Input motor parameters of motors other than HIWIN standard models. For linear motor, click on
Linear in figure 5.2.1.5 and click on Customized Linear. Input necessary parameters according to
the motor specification. After parameters are set, parameter settings can be saved as file (*.mot) and
be loaded anytime.
A. Basic parameters of motor specification
• Peak current
The maximum instantaneous current that the motor can withstand (Unit: A_amp and
A_rms)
• Continuous Current
The maximum continuous current that the motor can withstand (Unit: A_amp and A_rms)
Operation parameter
setting area
Motor parameter
setting area
