D1-N Series Servo Drive User Manual Servo Drive Configuration
HIWIN MIKROSYSTEM Corp. 5-19
MD17UE01-1906
Figure 5.2.2.1.3
Figure 5.2.2.1.4
Figure 5.2.2.1.5

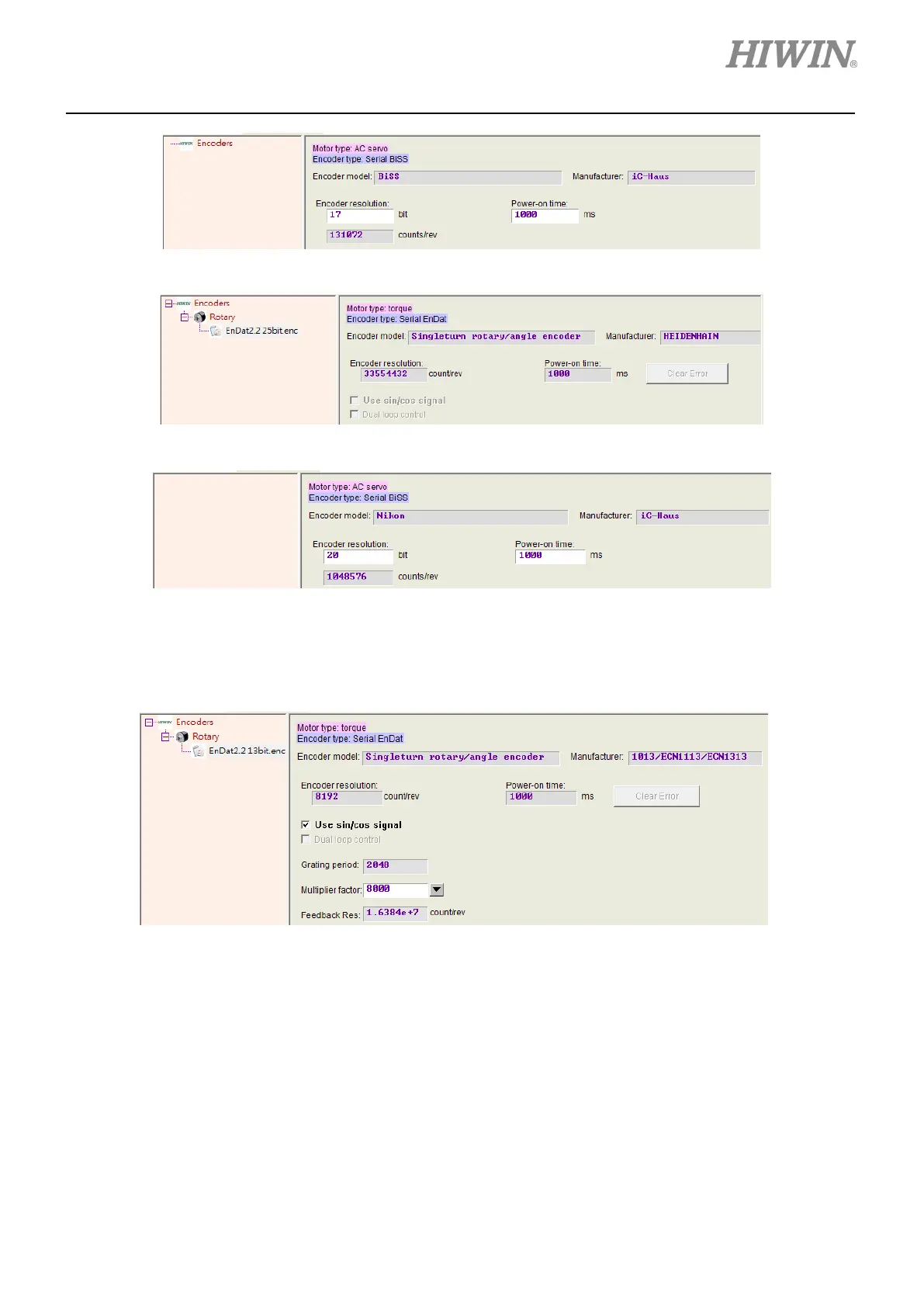

When EnDat 2.1 encoder is used, users are able to decide whether to use sin/cos signal to increase
resolution. The setting page is shown as figure 5.2.2.1.6.
Figure 5.2.2.1.6
