Installation
34 UDC3500 Universal Digital Controller Product Manual 3/07
The First Current Output is standard on all instruments.
+
Output Load
0 - 1000 ohms
–
Current Output
0-20 or 4-20 mA
1
L1
L2/N
4
5
7
8
9
28
29
30
31
32
33
34
35
36
6
1

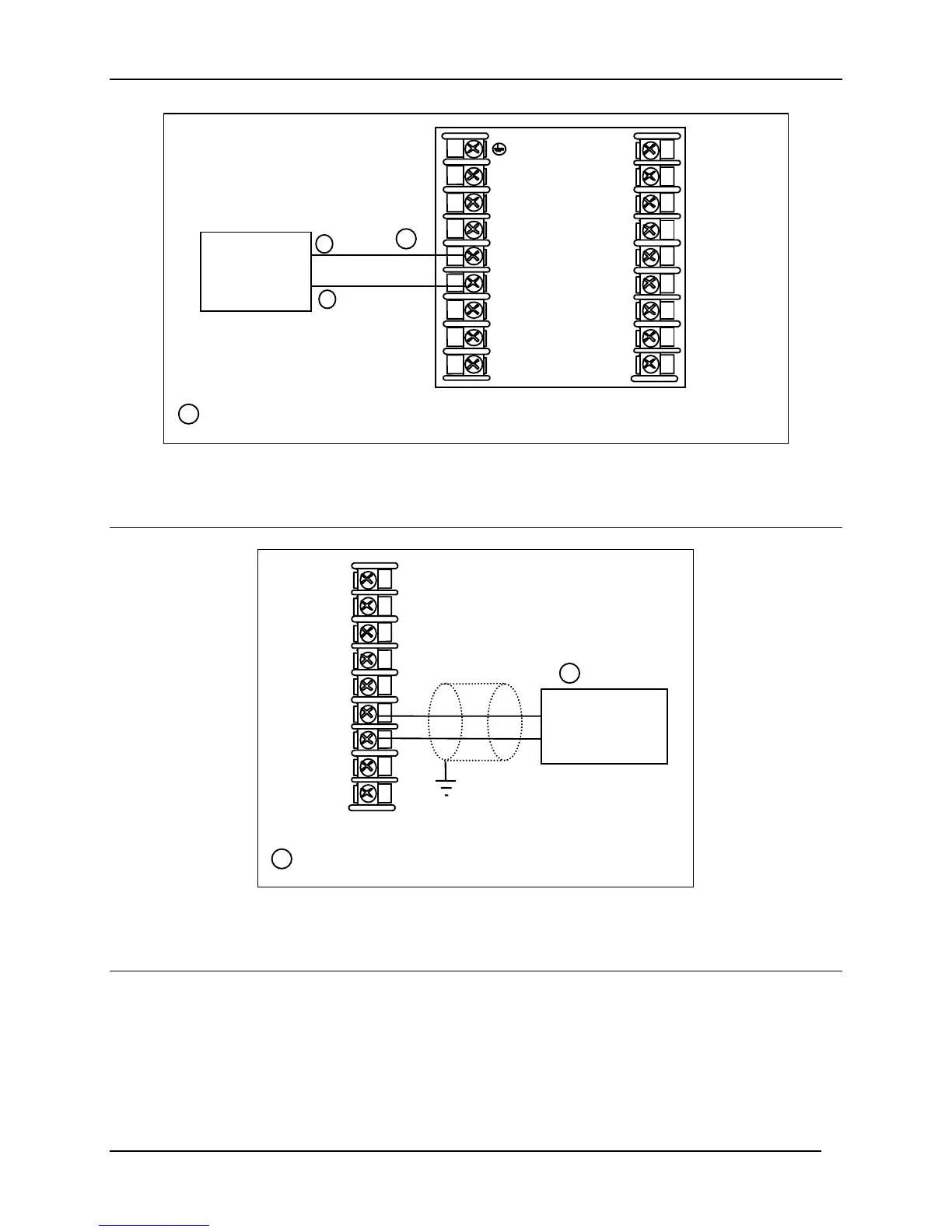

Figure 2-12 First Current Output
See Table 2-6 and Table 2-7 for other information about output types.
+
Output Load
0 – 1000 ohms
Connect shield
to ground at one
end only.
19
20
21
22
23
24
25
26
27
The Second Current Output is mutually exclusive with Ethernet
Communications.
1
1
Figure 2-13 Second Current Output
See Table 2-6 and Table 2-7 for other information about output types.
