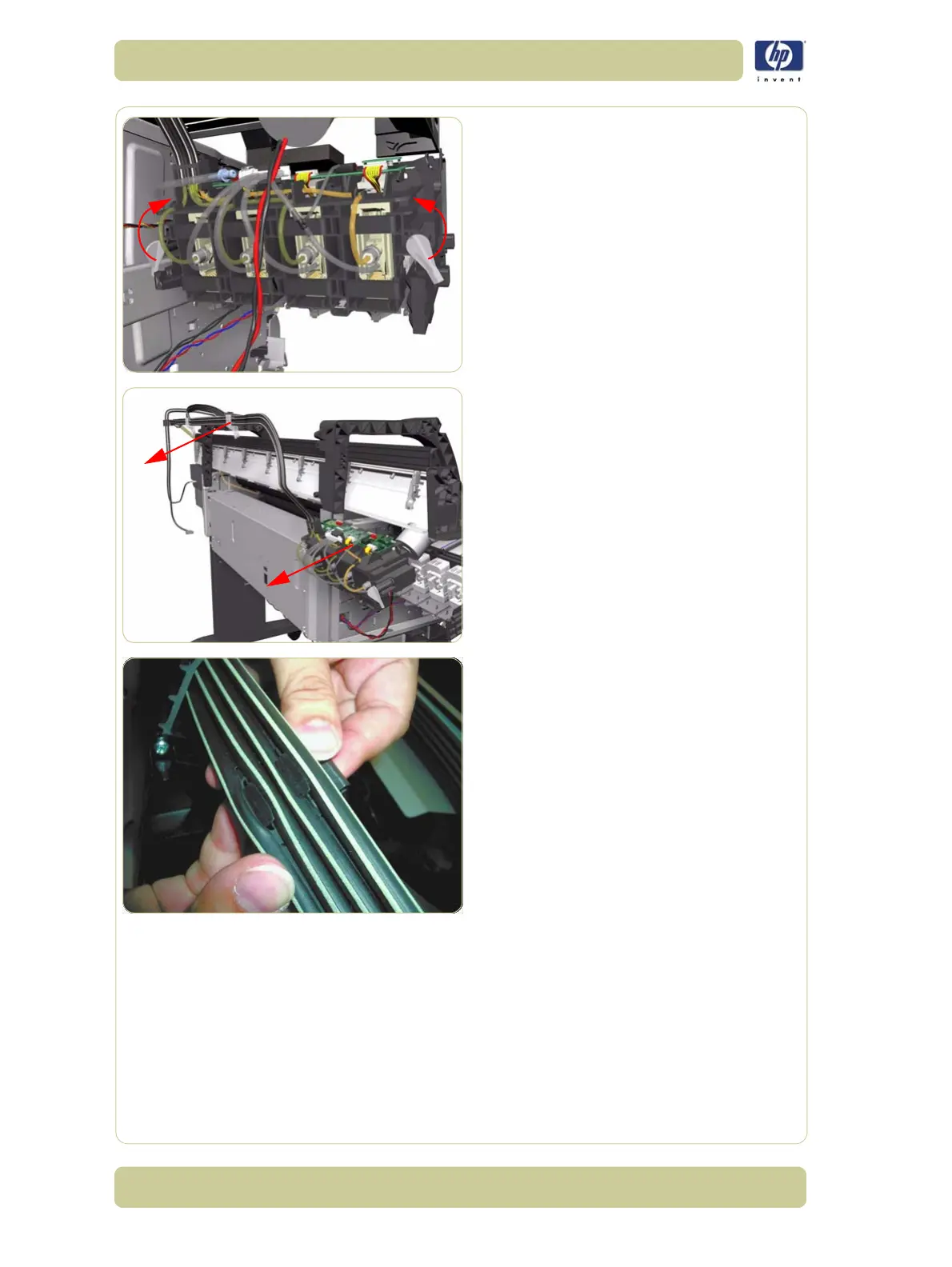

17. Twist the 2 latches at the rear of the Ink
Cartridge Tube Connector and release the
complete assembly.
18. Remove the Ink Supply Tubes and Trailing
Cable from the Printer.
19. Remove the eleven Cable Holders from the
two slots of the Ink Tube Carrier.
