FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

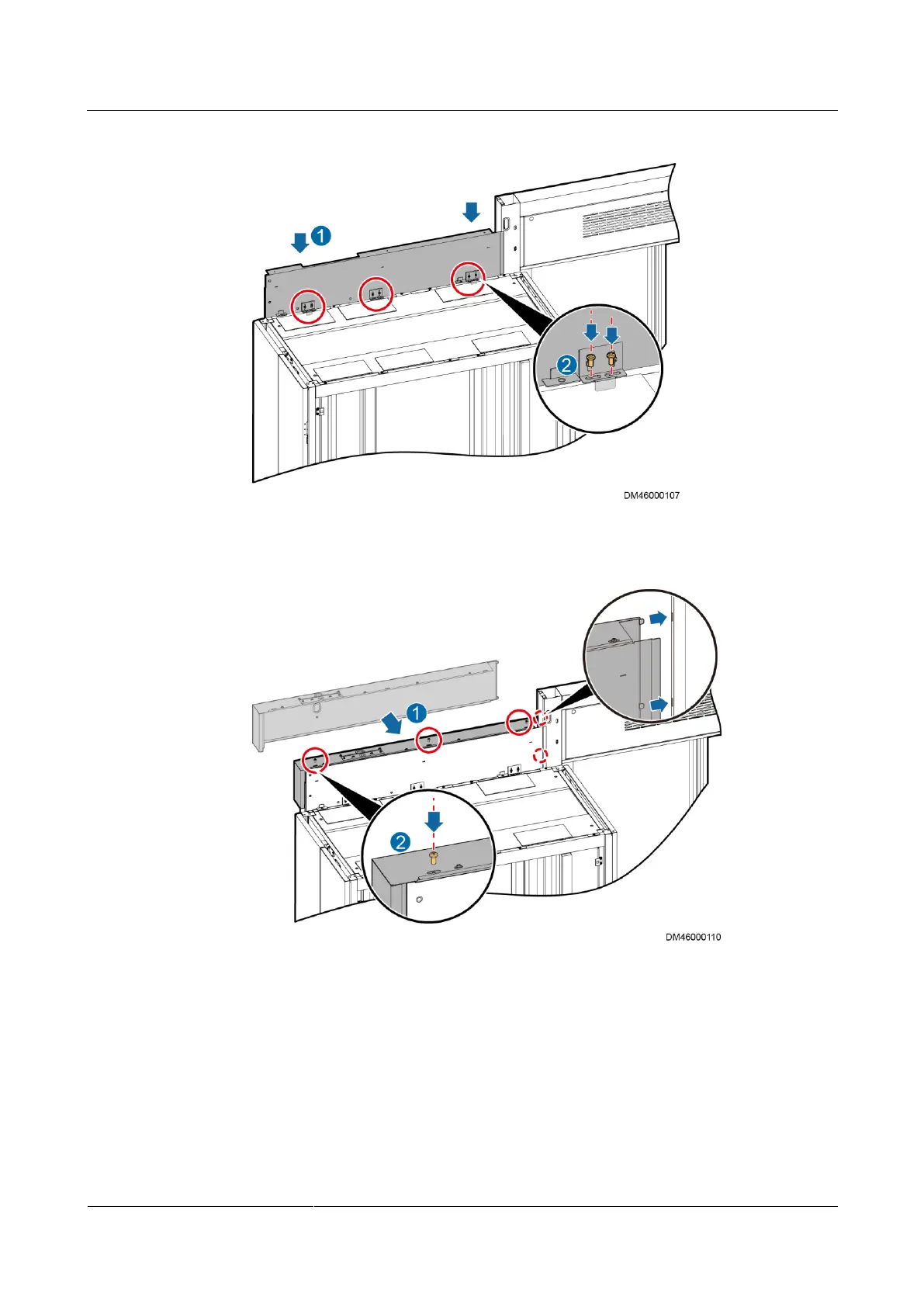

Figure 10-46 Installing the door box hanging kit
Figure 10-47 Installing the door box
Step 6 Secure the door box.
If the door box is evenly and properly placed as shown in Figure 10-48, secure it using M5
screws as shown by (2) in Figure 10-46. If the door box is tilted, adjust it as described in Step
7.
