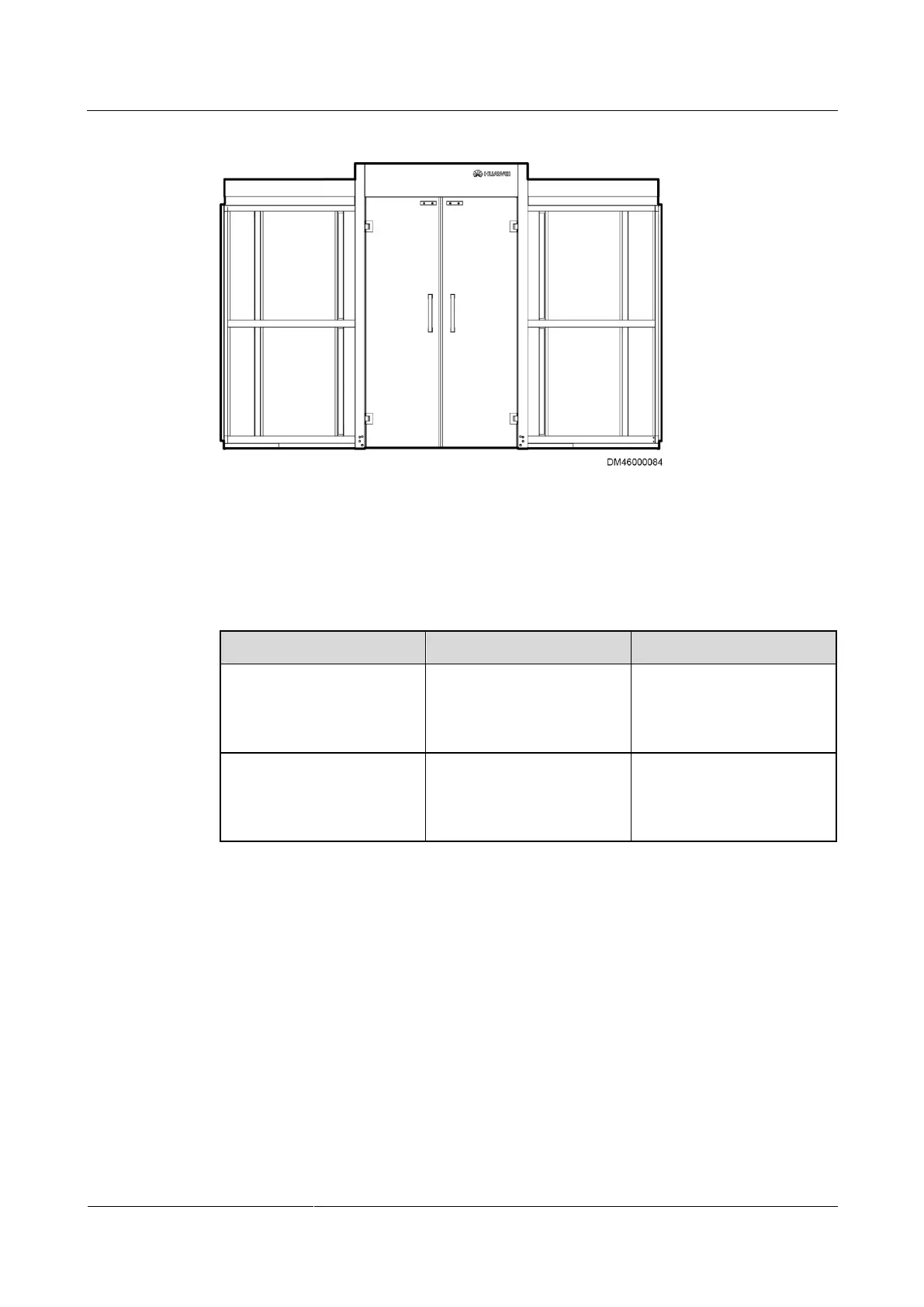

Figure 10-48 Door boxes in place
Step 7 Adjust the gaps.
After the door boxes are placed, the gaps between the door boxes and the posts may be
uneven and need to be adjusted, as shown in Figure 10-49 and Figure 10-51.
Table 10-8 Door box placement faults
Door box tilted with a
V-shaped gap
The top front and rear of the
cabinet are not on the same
level. Usually the front is
higher than the rear.
For details about the
adjusting method, see Step
7.1.
Door box tilted with a
Λ-shaped gap
The top front and rear of the
cabinet are not on the same
level. Usually the front is
lower than the rear.
For details about the
adjusting method, see Step
7.2.
1. Figure 10-49 shows a tilted door box. Turn the M6 door box screw in the leveling corner
piece furthest from the door frame clockwise to lift the door box until the V-shaped gap
disappears, as shown by (1) in Figure 10-50.
