FusionModule2000 Smart Modular Data Center
Installation Guide
10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

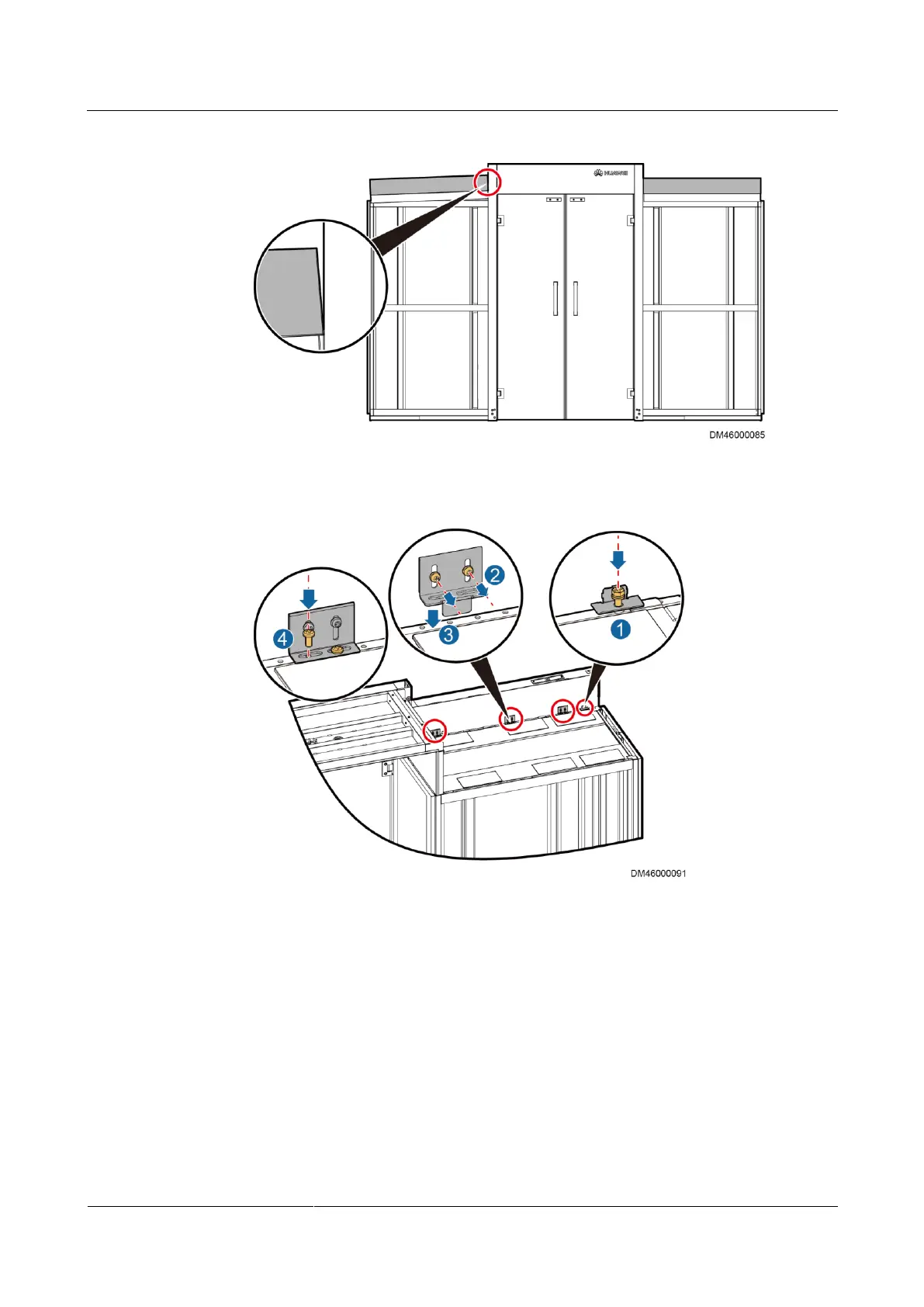

Figure 10-49 V-shaped gap
Figure 10-50 Adjusting the V-shaped gap
2. Figure 10-51 shows a tilted door box. Turn the M6 door box screw in the leveling corner
piece nearest to the door frame clockwise to lift the door box until the Λ-shaped gap
disappears, as shown by (1) in Figure 10-52.
