FusionModule2000 Smart Modular Data Center
Installation Guide
16 (Optional) Installing In-Room Access Control
Devices and Cameras
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Step 2 Close the door, place the cutout template near the door top at the far end of the door axis,
mark the mounting holes, and drill holes, as shown in Figure 16-13.

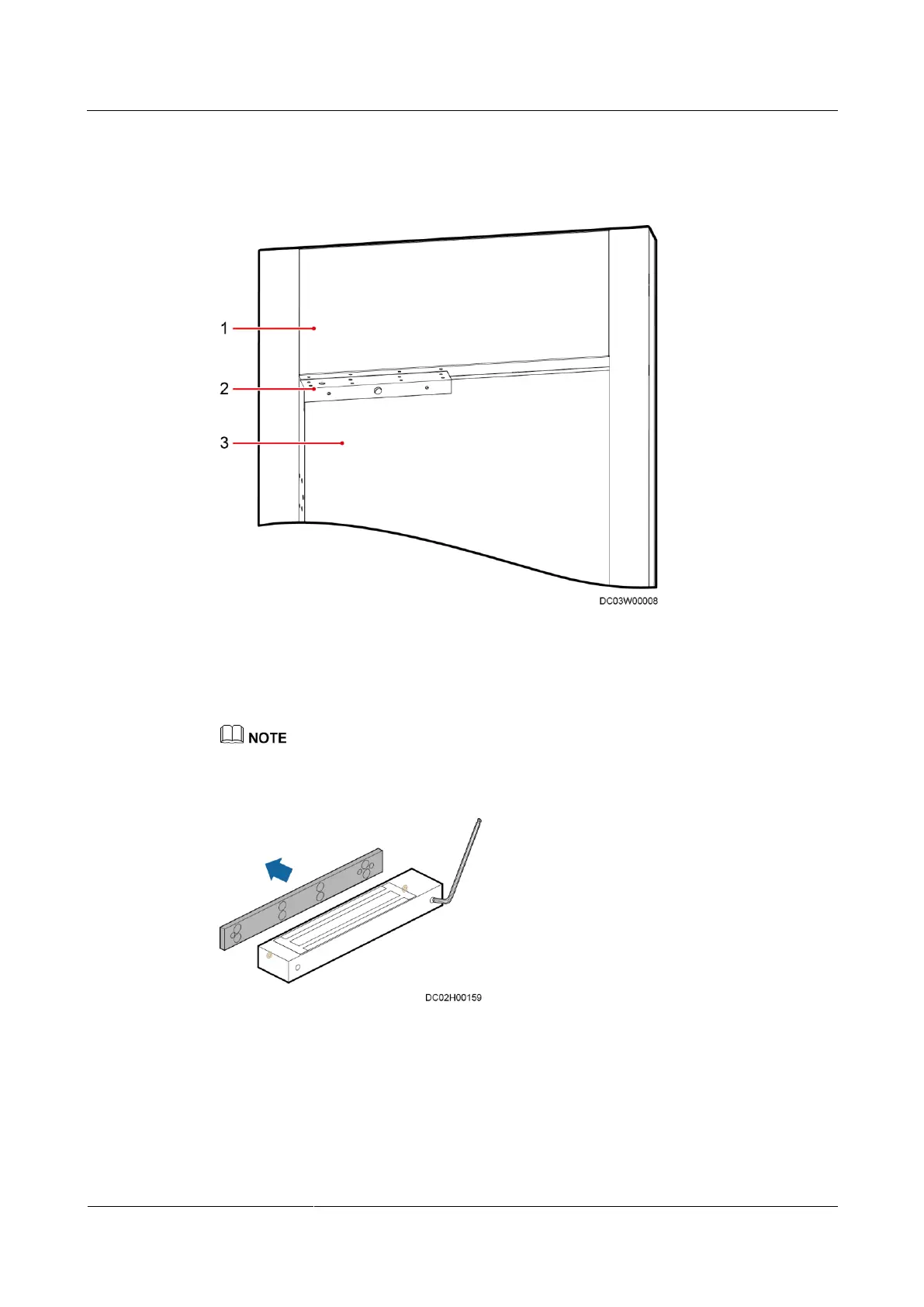

Figure 16-13 Marking mounting holes
Step 3 Remove the hoisting strip using the delivered hex key.
Two hex socket screws need to be removed in this step.
Figure 16-14 Removing the hoisting strip
Step 4 Secure the hosting strip using the delivered screws, as shown by (1) in Figure 16-15.
