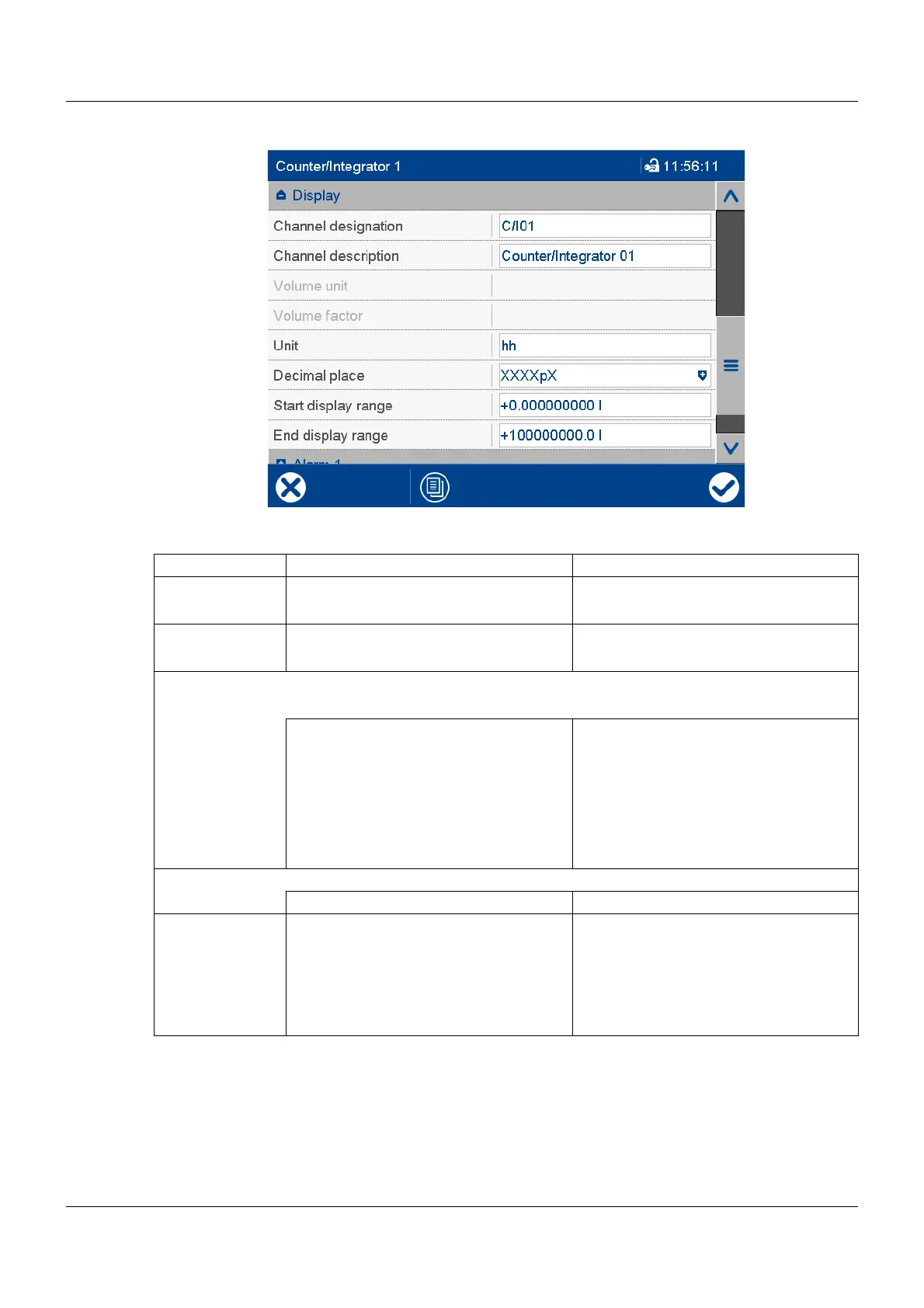

Device dialog – counter/integrator 1 ... – display
Parameter
Parameter Selection/settings Description
Channel designa-
tion
C/I ...
Use default text or enter other text.
Name (abbreviation) with max. 5 charac-
ters that is used in the visualizations.
Channel descrip-
tion
Counter/integrator ...
Use default text or enter other text.
Description (designation) with max. 21
characters (e.g. for curve diagram)
Volume unit Unit in which the total flow is shown.
The unit is displayed wherever the status is displayed in numerical form.
l Liters
m
3
Cubic meters
gal Gallons
hl Hectoliters
By the volume factor The total flow (in liters) is multiplied by
the volume factor and is displayed in the
freely selectable unit.
Volume factor Conversion factor for evaluating the total flow (for the volume unit "Volume factor")
-99999 to 1 to 99999 Factor
Unit 5 characters () Unit in which the counter or integrator
status is displayed. This is also used if
"By the volume factor" is configured as
the volume unit.
The unit is displayed wherever the status
is displayed in numerical form.
