Figure 23 on page 80 shows a Channelized OC12/STM4 Enhanced IQ (IQE) PIC with SFP installed in PIC
slot0of an FPC installed in slot3 and slot4.

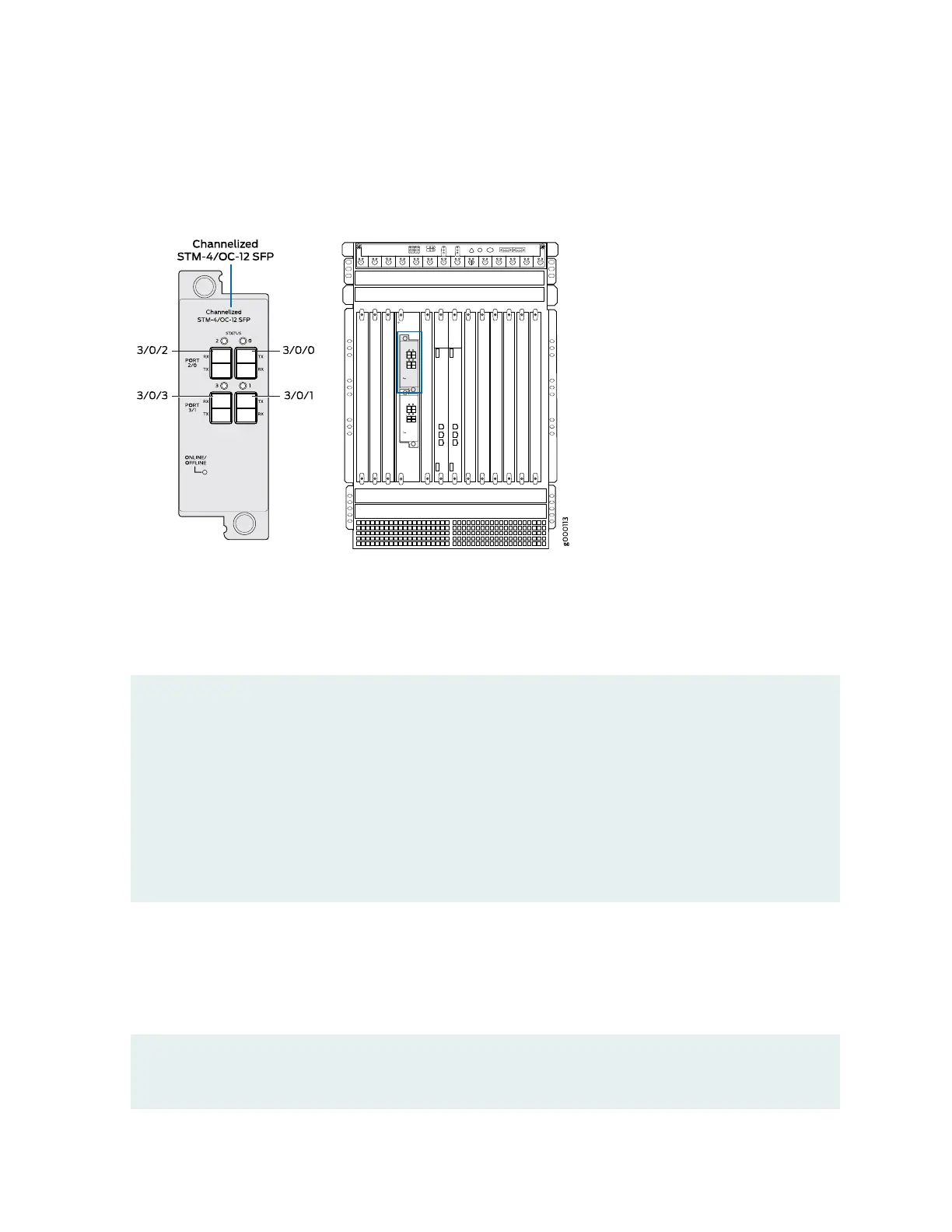

Figure 23: MX960 PIC Interface Port Mapping
0 1 2 3 4
0 1 2 3
5 0 1 2 6 7 8 9 10 11
The show chassis hardware command output displays a Channelized OC12/STM4 Enhanced IQ (IQE) PIC
(4x CHOC12 IQE SONET) installed in an MX FPC Type 2.
user@host> show chassis hardware
...
FPC 3 REV 01 710-024386 JW9571 MX FPC Type 2
CPU REV 03 710-022351 KE2986 DPC PMB
PIC 0 REV 00 750-022630 DS1284 4x CHOC12 IQE SONET
Xcvr 0 REV 01 740-011782 PB821SG SFP-SX
Xcvr 1 REV 01 740-011782 PB829Q6 SFP-SX
Xcvr 2 REV 01 740-011613 P9F15NQ SFP-SX
Xcvr 3 REV 01 740-011782 P7N036X SFP-SX...
The show interfaces terse command output displays the channelized SONET OC12 interfaces (coc12),
that correspond to the four ports located on the PIC.
user@host> show interfaces terse coc12*
Interface Admin Link Proto Local Remote
