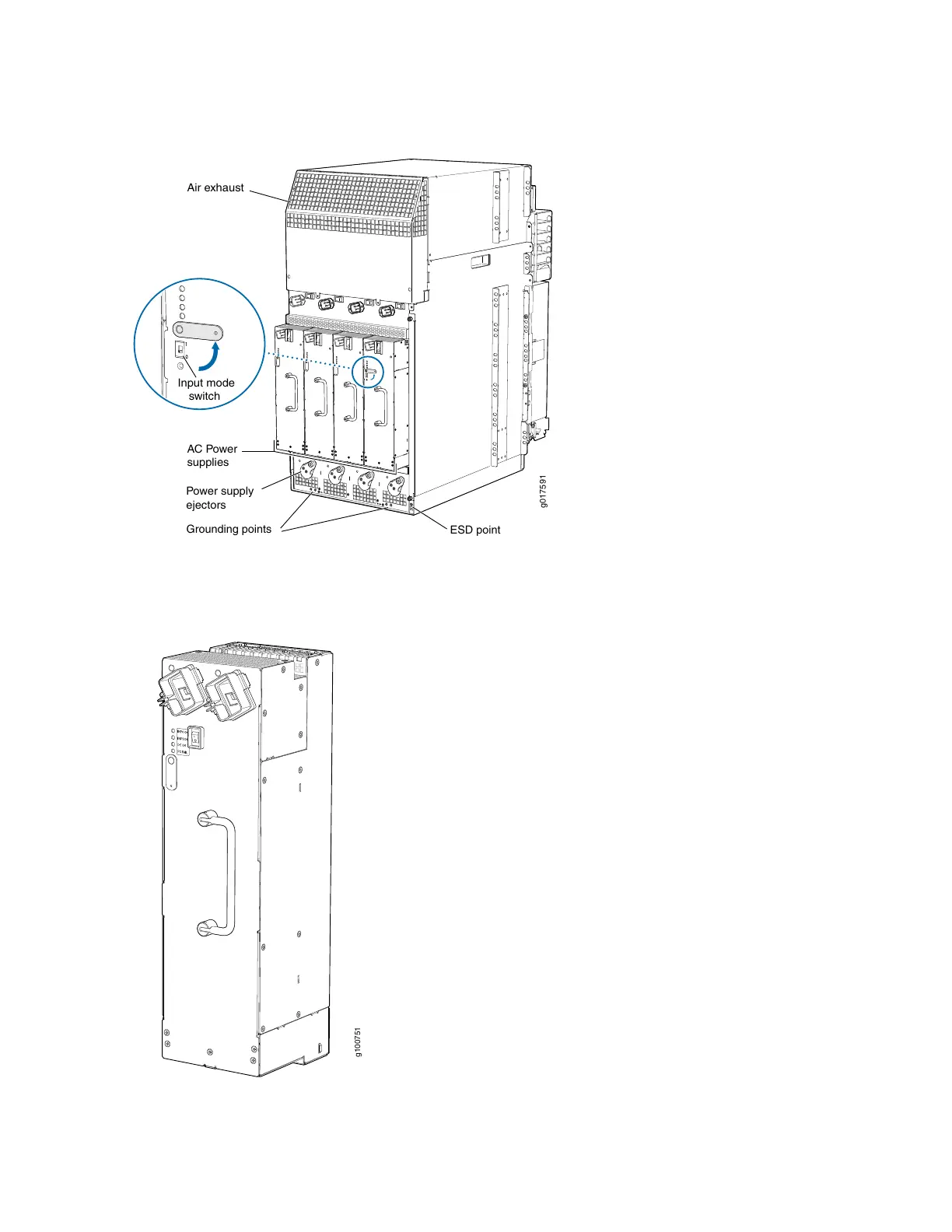

Figure 33: MX960 with High-Capacity AC Power Supplies Installed
g017591
Grounding points
ESD point
Power supply
ejectors
AC Power
supplies
Air exhaust
Input mode
switch
Figure 34: MX960 High-Capacity Second-Generation AC Power Supply
g100751
132
