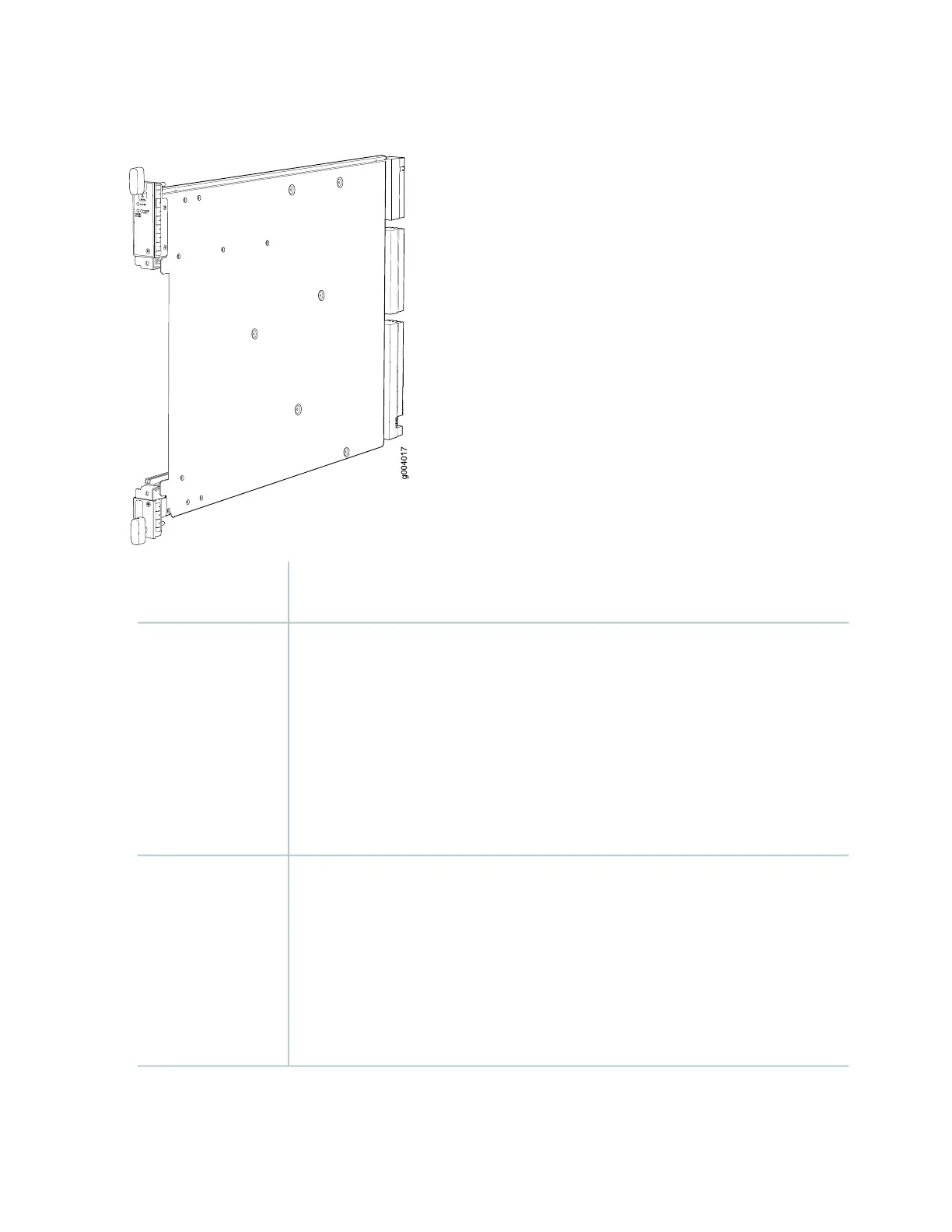

Figure 44: SCB-MX
•
Junos OS Release 12.3 R1 and later
•
Name in CLI: SCB
Software release
•
Powers on and powers off DPCs, FPCs, and MPCs.
•
Controls clocking, system resets, and booting.
•
Monitors and controls system functions, including fan speed, board power status, power
distribution module status and control, and the craft interface
•
Provides Ethernet connectivity to all processors in the chassis for control plane
communications.
•
Provides bandwidth of up to 160 Gbps per slot with redundant fabric support.
•
Provides interconnections to all the DPCs, FPCs, and MPCs within the chassis through
the switch fabrics integrated into the SCB-MX.
SCB-MX Functions
•
Control Board and Routing Engine (CB-RE) mastership mechanism.
•
External clock interface—Allows BITS or GPS clock source input to the centralized timing
circuit, or allows centralized timing to be output to BITS or GPS.
•
Switch fabric—Provides switching functions for MPCs.
•
1000Base-T Ethernet controller—Provides a 1 Gbps Ethernet link between the Routing
Engines.
•
Power circuits for the Routing Engine and the SCBE2-MX.
•
LEDs—Provide status of the SCBE2-MX and the clocking interface.
SCB-MX Components
169
