Additional clearance is required to accommodate the height and depth of the chassis with the extended
cable manager:
•
36.5 in. (92.7 cm) high
•
29.00 in. (73.7 cm) deep approximately
•
Additional clearance is also required to accommodate the depth of the MX960 high-capacity power
supplies; they extend beyond the chassis as shown in Table 81 on page 186.
Table 81: Clearance Requirements for High-Capacity Power Supplies
Additional depth requirementPower Supply
2.85” (7.24 cm)MX960 high-capacity AC power supply
5.05” (12.83 cm)MX960 high-capacity DC power supply

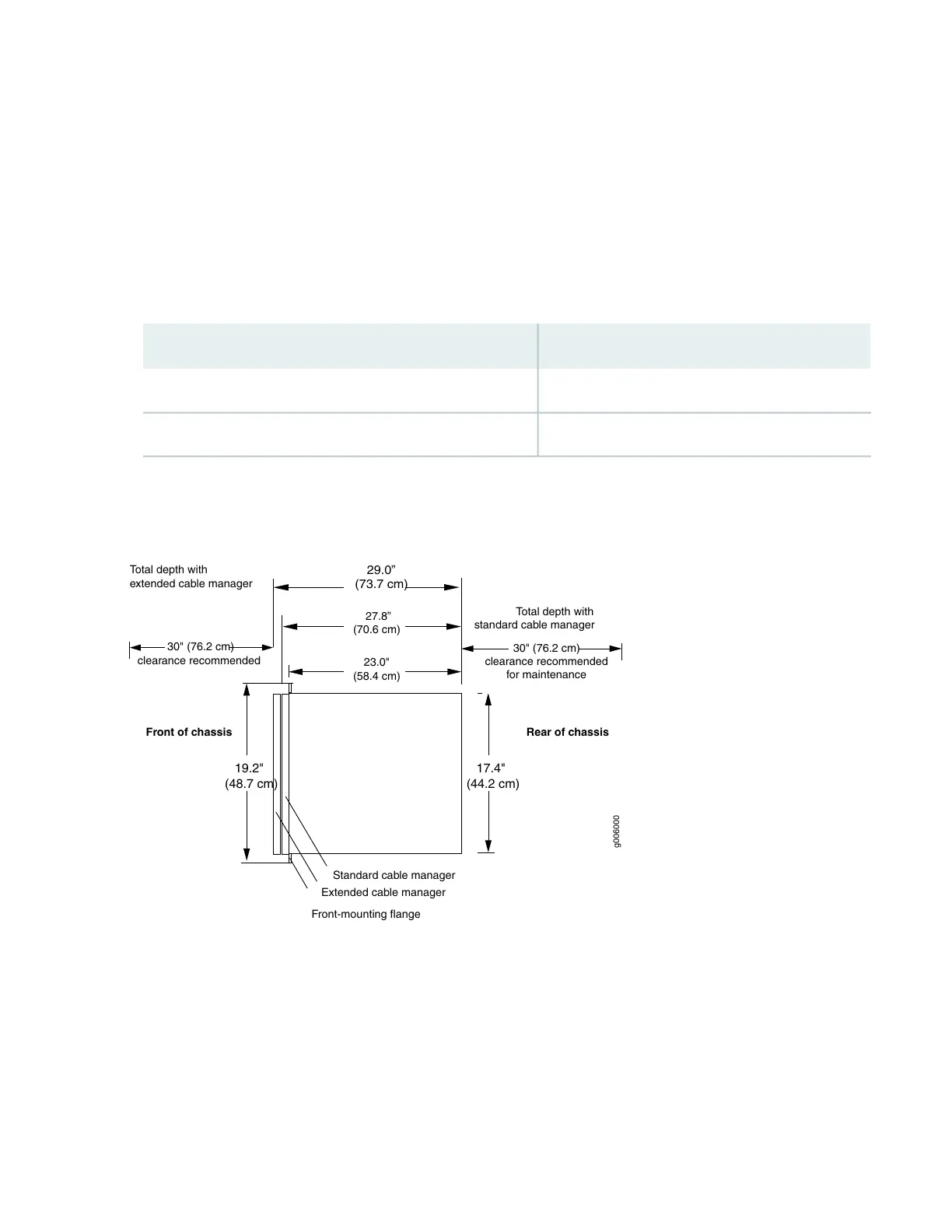

Figure 46: Chassis Dimensions and Clearance Requirements for the MX960 Router with the
Normal-Capacity Power Supplies
g006000
Rear of chassisFront of chassis
17.4"
(44.2 cm)
23.0"
(58.4 cm)
Front-mounting flange
19.2"
(48.7 cm)
30" (76.2 cm)
clearance recommended
30" (76.2 cm)
clearance recommended
for maintenance
Standard cable manager
27.8”
(70.6 cm)
Extended cable manager
29.0”
(73.7 cm)
Total depth with
standard cable manager
Total depth with
extended cable manager
