The chassis with the extended cable manager installed measures 36.5 in. (92.7 cm) high,
17.37 in. (44.11 cm) wide, and approximately 29.00 in. (73.7 cm) deep (from the front-mounting flanges
to the rear of the extended cable manager). Up to two routers with the extended cable manager can be
installed in a 48-U rack if the rack can handle their combined weight, which can be greater than 748 lb
(339.28 kg).
Mounting hardware includes front-mounting flanges on the front of the chassis, and two center-mounting
brackets attached to the center of the chassis.

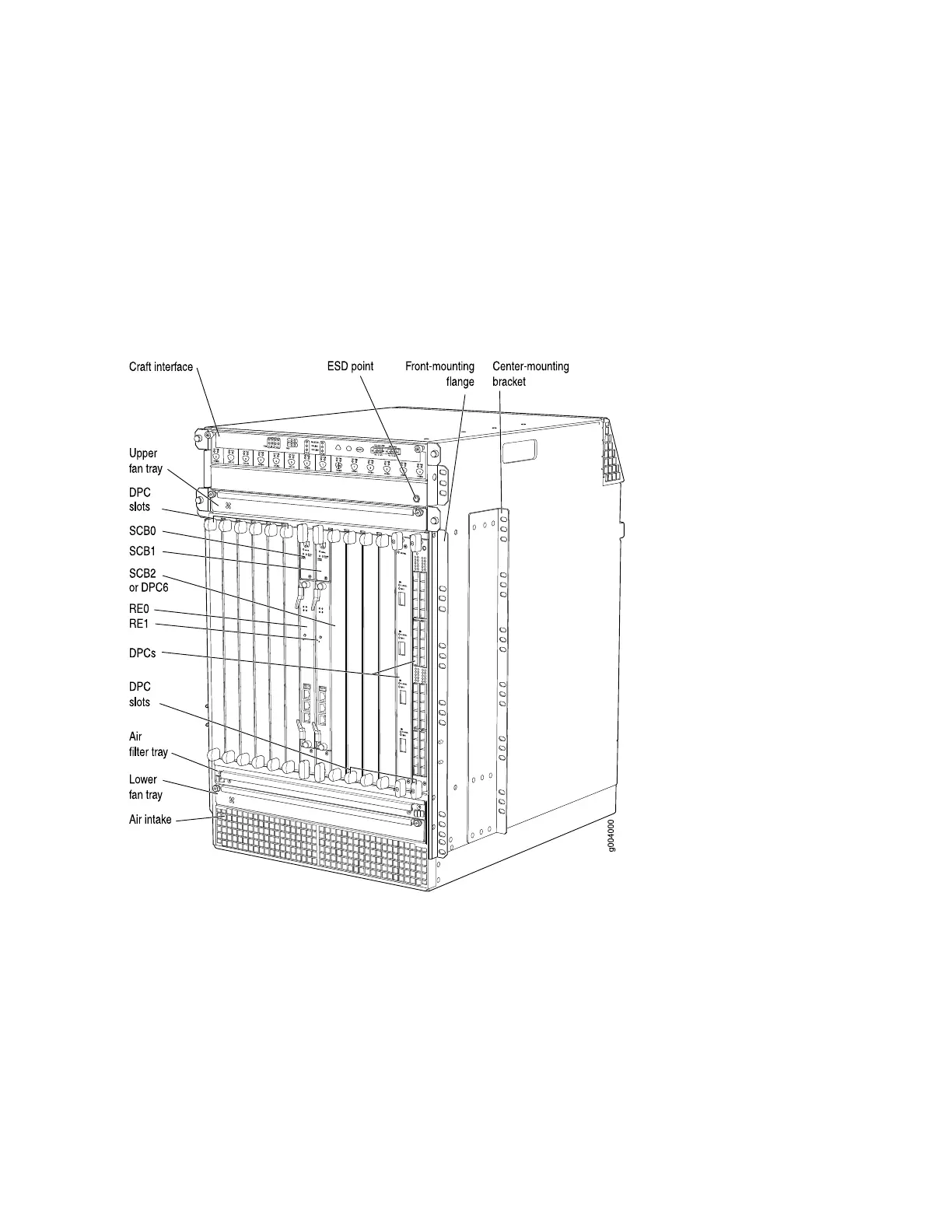

Figure 1: Front View of a Fully Configured MX960 Router Chassis
