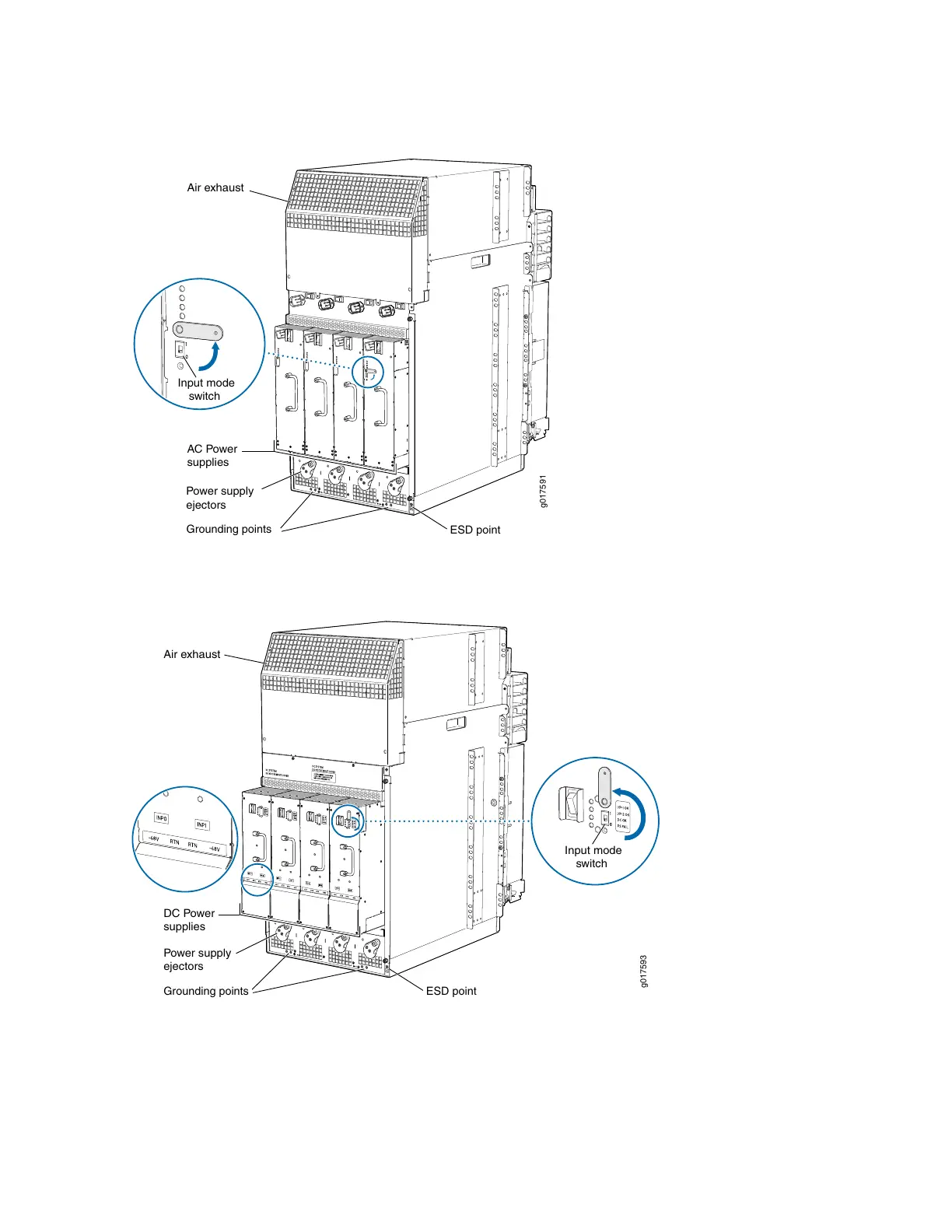

Figure 2: Rear View of a Fully Configured AC-Powered MX960 Router Chassis
g017591
Grounding points
ESD point
Power supply
ejectors
AC Power
supplies
Air exhaust
Input mode
switch
Figure 3: Rear View of a Fully Configured DC-Powered MX960 Router Chassis
g017593
Grounding points
ESD point
Power supply
ejectors
DC Power
supplies
Air exhaust
Input mode
switch
