NOTE: Removing the cables from the extended cable manager is not necessary to access
the air filter.
CAUTION: Do not let fiber-optic cable hang free from the connector. Do not
allow fastened loops of cable to dangle, which stresses the cable at the fastening
point.
CAUTION: Do not run the router for more than two minutes without the air
filter in place.
3. Simultaneously pull the two releases labeled PULL on the standard cable manager. Lift it up and outward
to lock it in place to access the air filter.
4. Pull the filter tray release on both sides of the filter tray.
5. Slide the air filter tray out of the chassis as shown in Figure 171 on page 454.

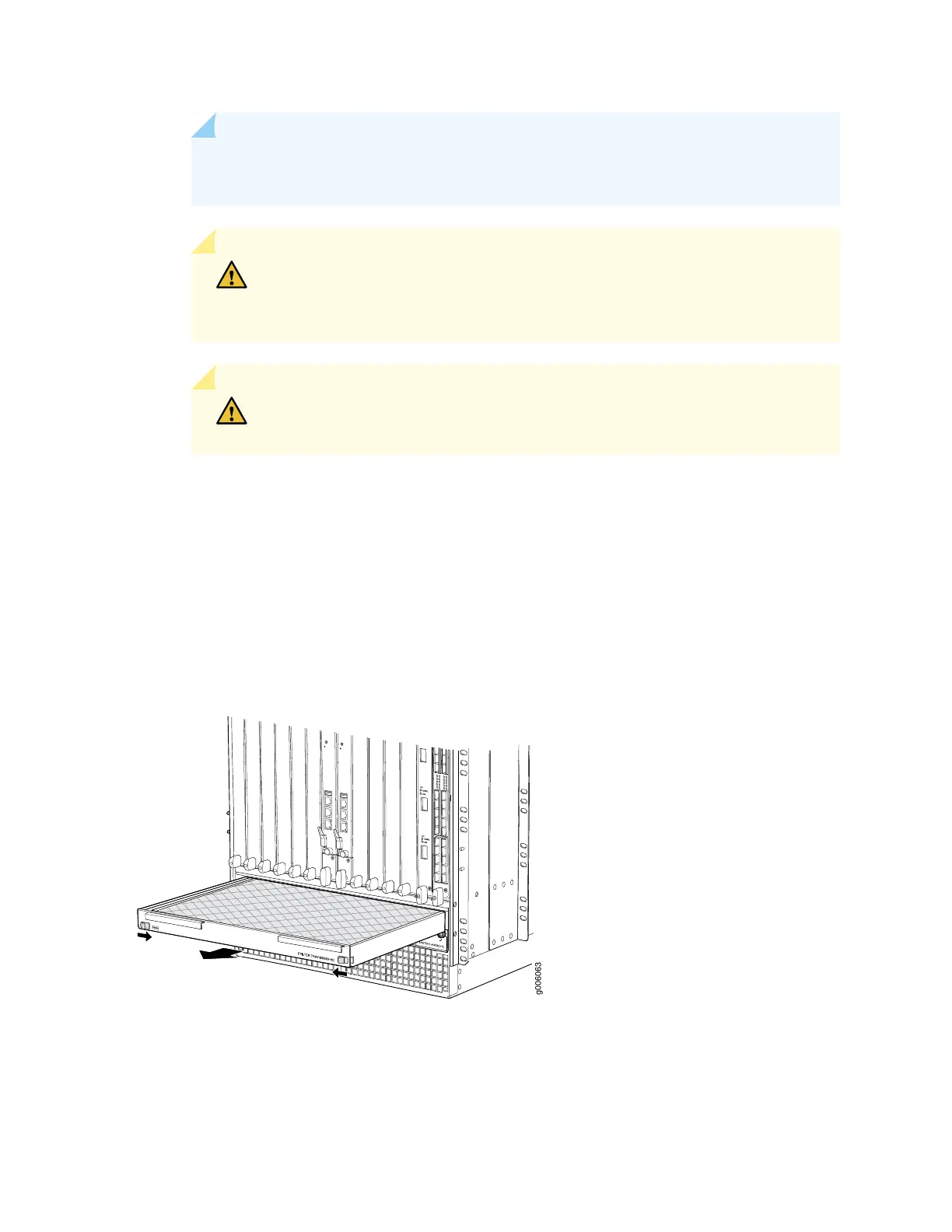

Figure 171: Removing the Normal-Capacity Air Filter Tray from the Chassis
