You can use cable strips or other ties to gently secure the cables in the standard cable manager. To secure
the cables in place, loop the tie through the cable anchor and secure the tie. You can pull the standard
cable manager up and outward to lock it into the maintenance position. This allows you to access the lower
fan tray and the air filter.

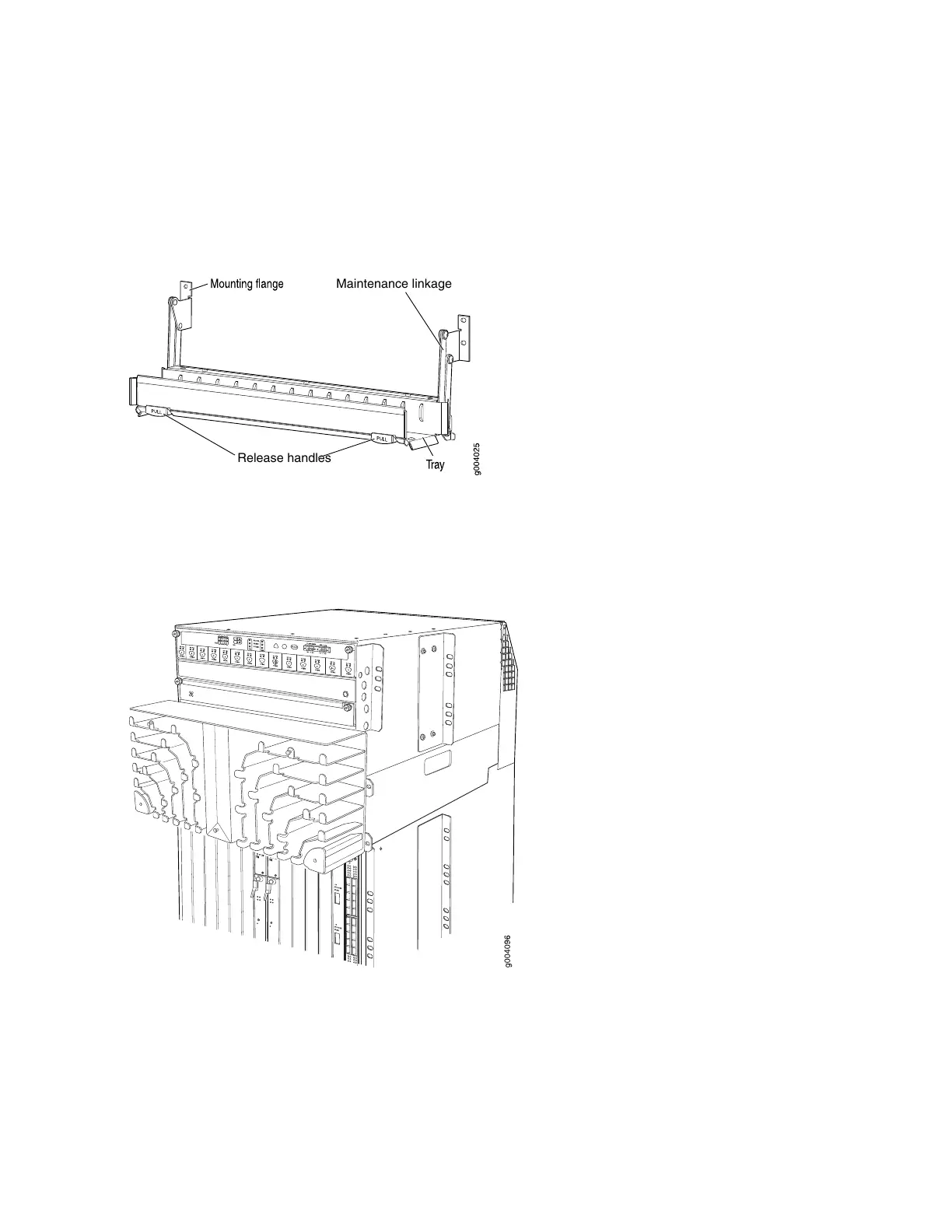

Figure 9: Standard Cable Manager
Release handles
Maintenance linkage
The extended cable manager allows you to route cables away from the front of the DPCs, MPCs, MICs,
and PICs, and provides additional access (see Figure 11 on page 24 and Figure 10 on page 23).
Figure 10: Extended Cable Manager
23
