CAUTION: To prevent damage when handling or carrying FPCs:
•
As you carry the FPC, do not bump it against anything. FPC components are fragile.
•
Do not grasp the FPC anywhere except places that this document indicates. In
particular, never grasp the connector edge, especially at the power connector in the
corner where the connector and bottom edges meet (see Figure 225 on page 608).

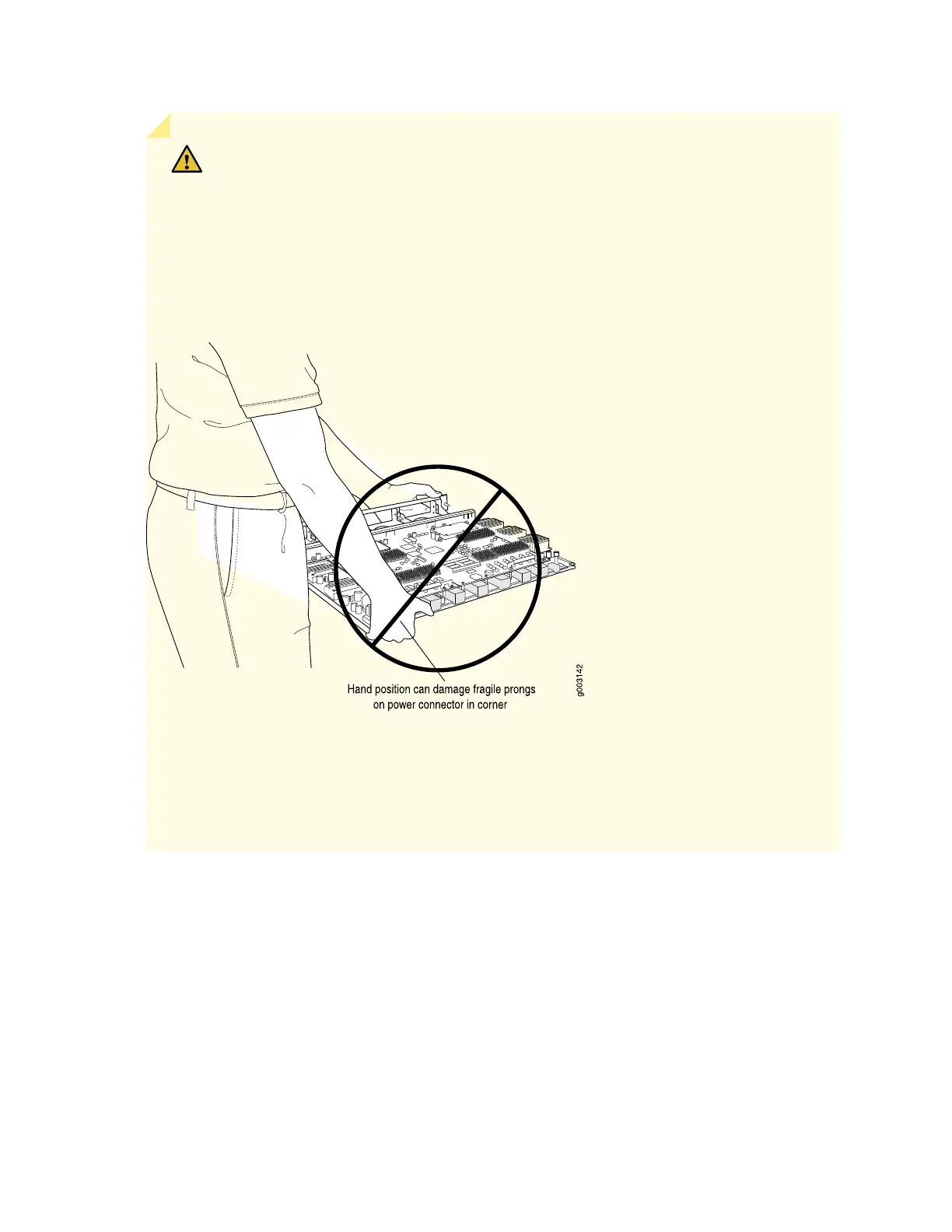

Figure 225: Do Not Grasp the Connector Edge
•
Do not carry the FPC by the faceplate with only one hand (see
Figure 226 on page 608).
Figure 226: Do Not Carry an FPC with Only One Hand
608
