5 Motor control (MCTRL)
5.1 Motor selection/Motor data
138
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Other motor data

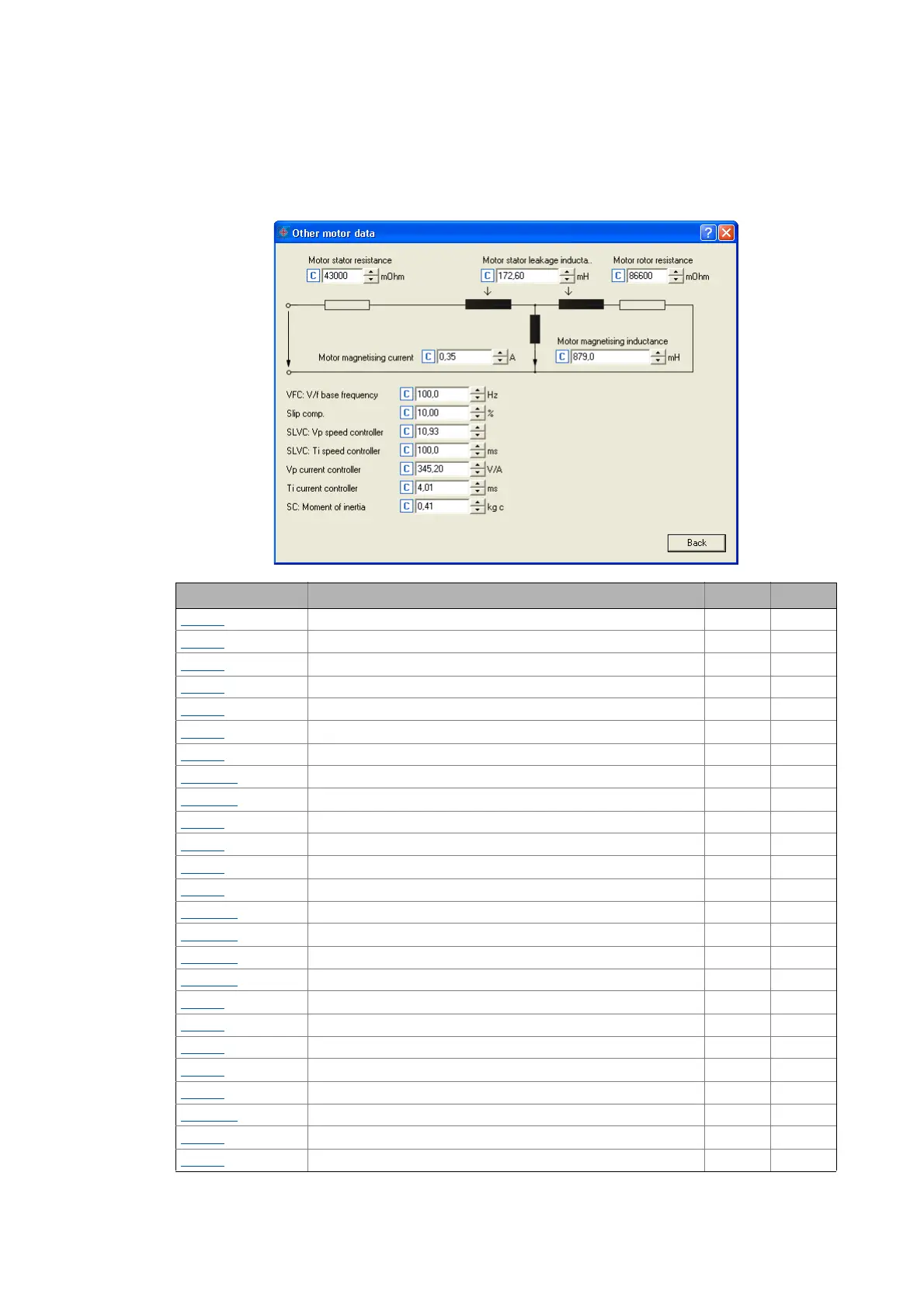

Click the Other motor data... button and go to the Other motor data dialog box including the motor
equivalent circuit (in the following for an asynchronous motor):
Parameters Info ASM PSM
C00084
Motor stator resistance
C00085
Motor stator leakage inductance
C00082
Motor rotor resistance
C00095
Motor magnetising current
C00092
Motor magnetising inductance
C00015
VFC: V/f base frequency
C00021
Slip compensation
C00070/1
SLVC: Vp speed controller
C00071/1
SLVC: Ti speed controller
C00075
Vp current controller
C00076
Ti current controller
C00273
Moment of inertia
C00016
VFC: Vmin boost
C00070/2
SC: Vp speed controller
C00071/2
SC: Ti speed controller
C00070/3
SLPSM: Vp speed controller
C00071/4
SLPSM: Ti speed controller
C00072
SC: Tdn speed controller
C00011
Appl.: Reference speed
C00022
Imax in motor mode
C00966
VFC: Time const. slip comp.
C00982
VFC-ECO: Voltage reduction ramp
C00073/1
VFC: Vp Imax controller
C00077
SC: Vp field controller
C00078
SC: Tn field controller
