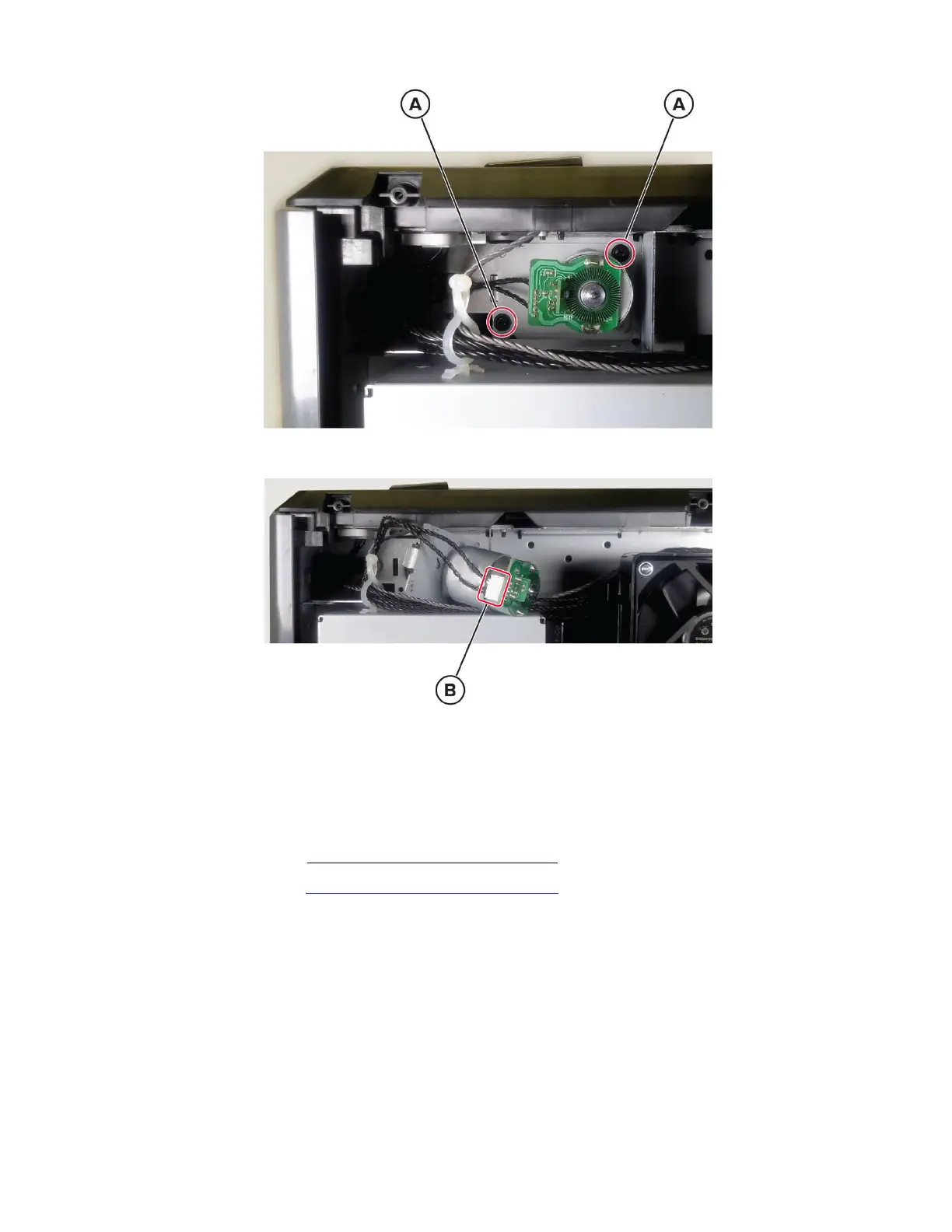

4 Swing the motor to the right, and then disconnect the cable (B).
5 Remove the motor.
Sensor (toner smart chip) removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the top cover. See “Top cover removal” on page 455.
3 Remove the left cover. See “Left cover removal” on page 409.
4064
Parts removal
418
