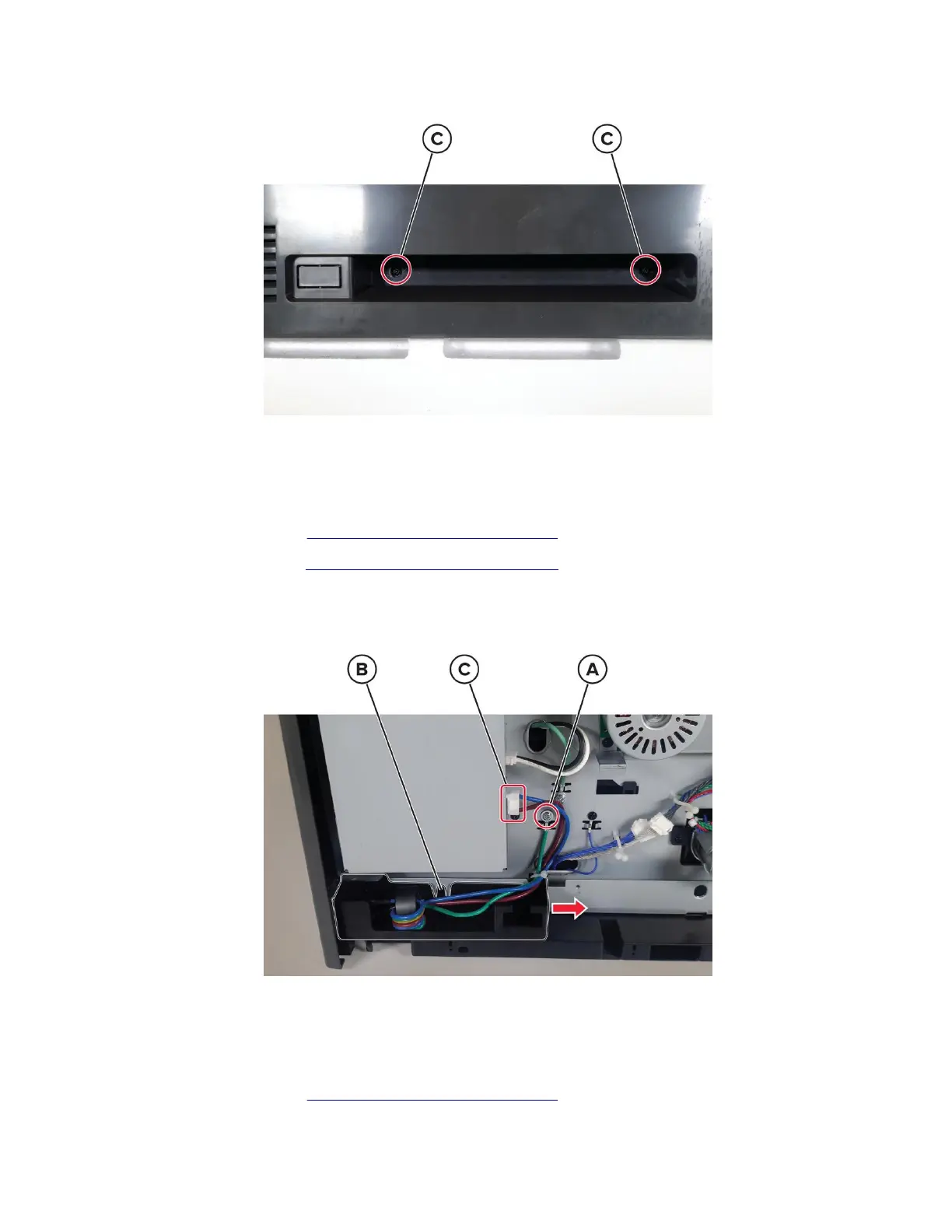

4 Remove the two lower screws (C).
5 Remove the cover.
AC power socket removal
1 Remove the top cover. See “Top cover removal” on page 455.
2 Remove the left cover. See “Left cover removal” on page 409.
3 Remove the ground screw (A), release the latch (B), and then move the power connector to the front.
4 Disconnect the cable (C), and then remove the power socket.
Main motor drive removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the top cover. See “Top cover removal” on page 455.
4064
Parts removal
410
