Lexmark MS821

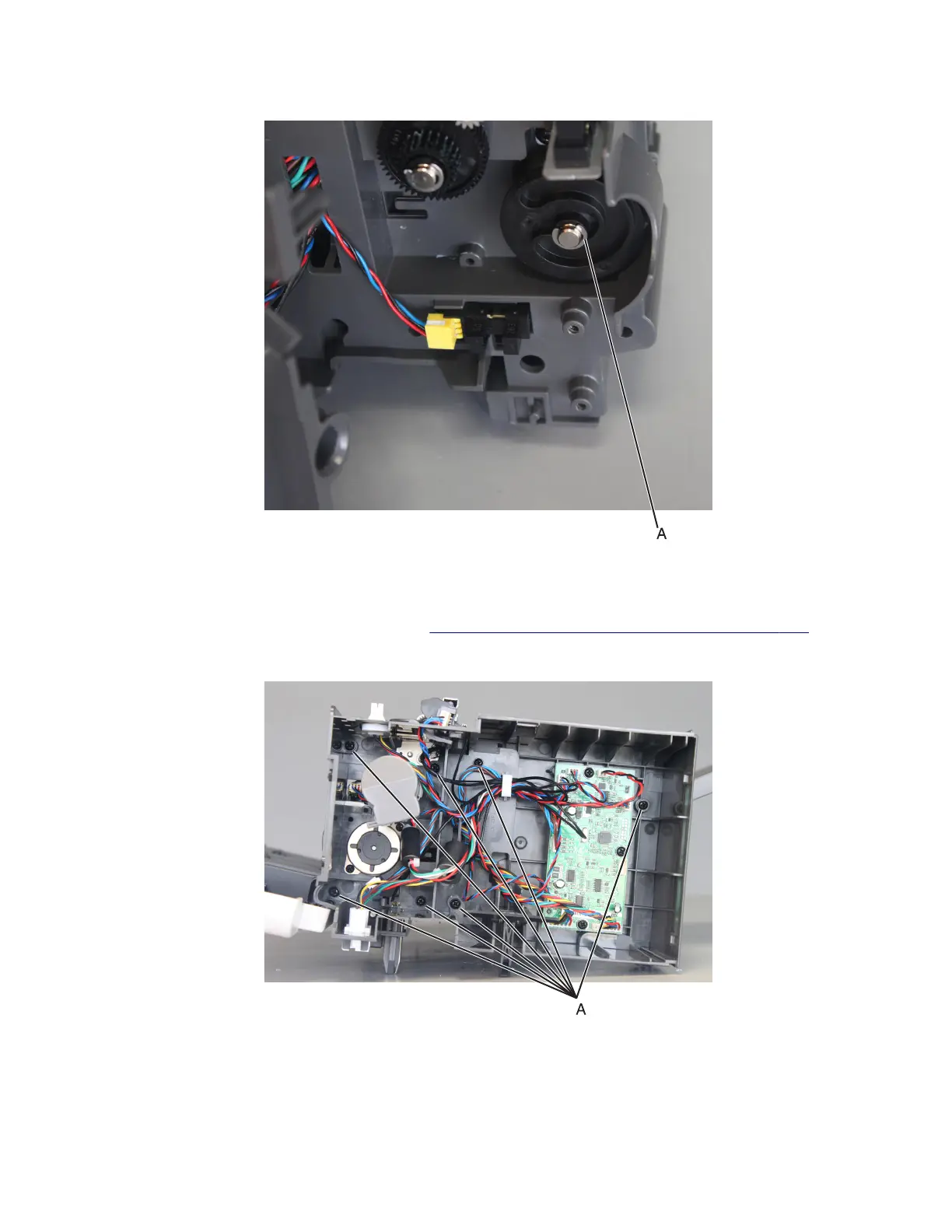

3 Remove the E-clip (A), and then remove the cam.
Output expander drive gear removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A) from the frame.
4064
Parts removal
531
