Lexmark MS821

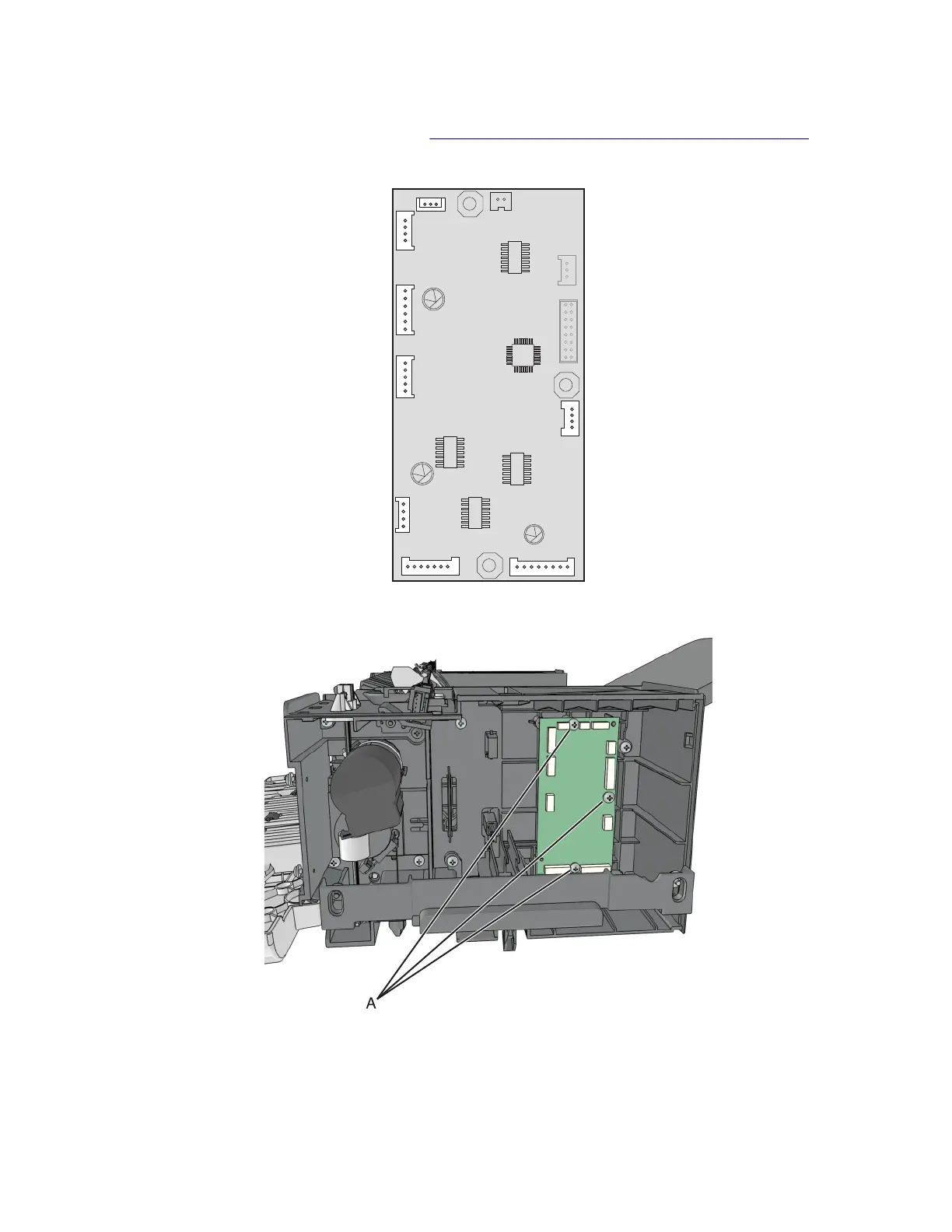

Output expander controller board removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Disconnect all the cables from the controller board.
3 Remove the three screws (A), and then remove the controller board.
4064
Parts removal
524
