Optional output expander removals
Optional output expander removal
1
Press the latches to release.
2

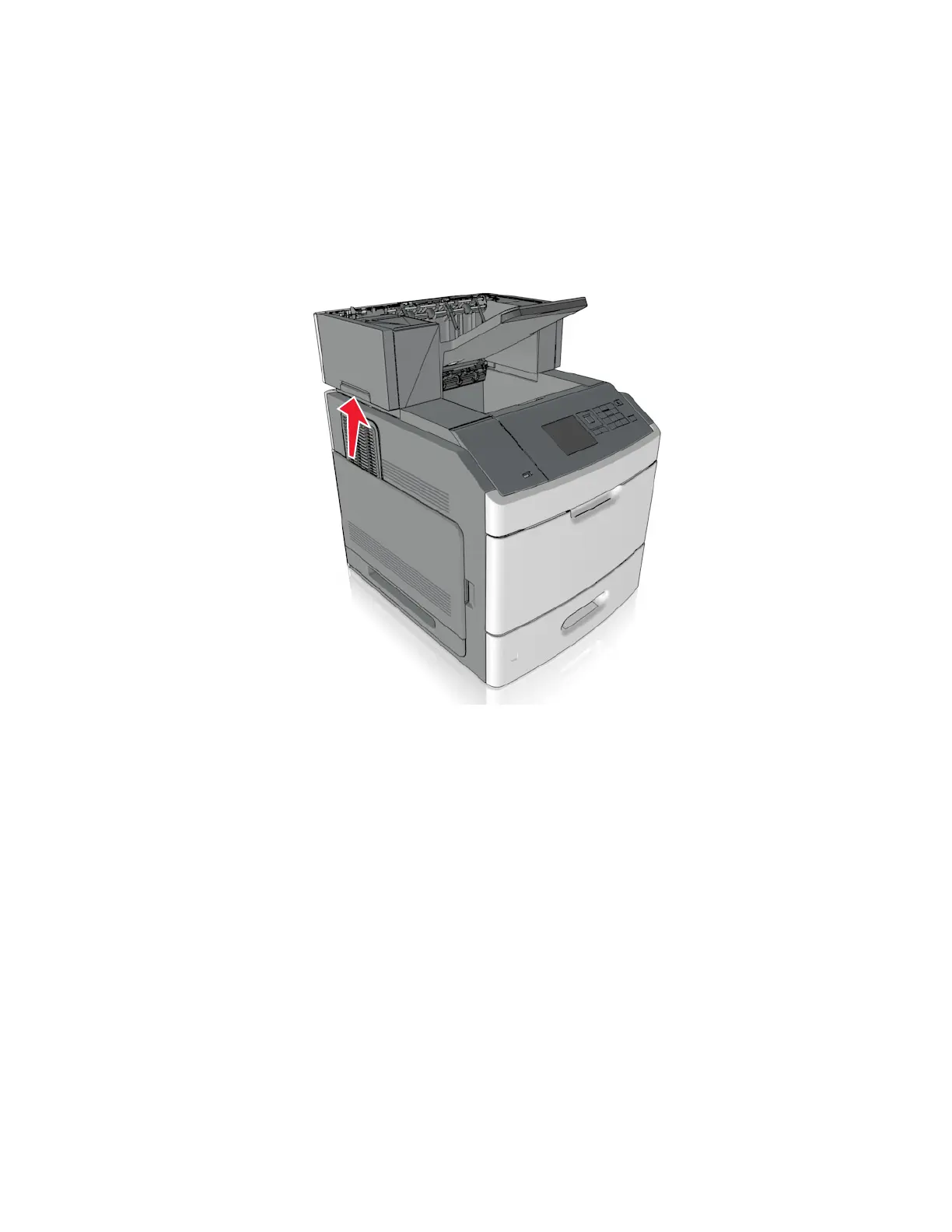

Lift the expander o the printer
.
Output expander top cover removal
Lift the top cover o the expander
, and remove.
