Sensor (staple finisher bin paper present) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.

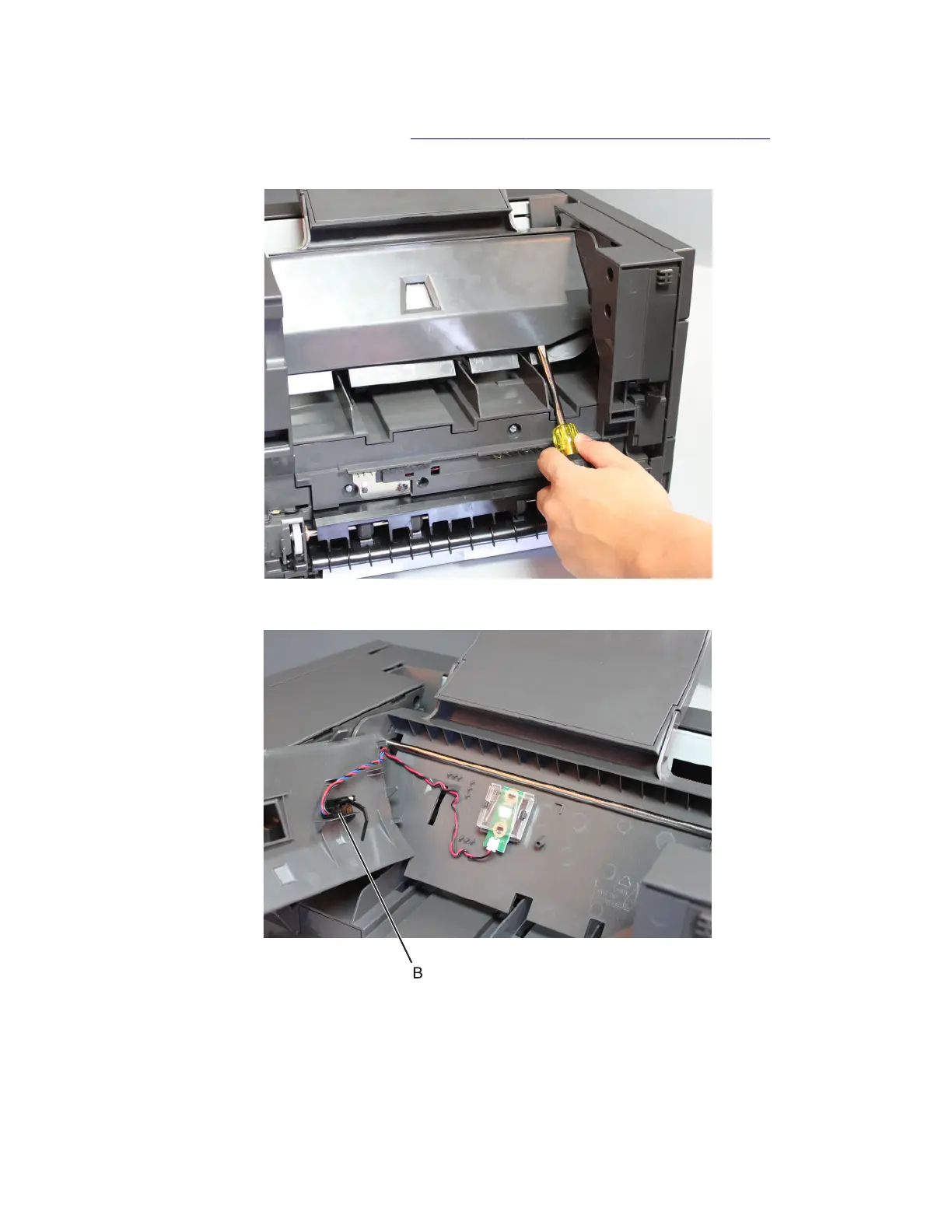

2 With a prying tool, open the LED cover.
3 Release the sensor (B) from the cover.
4 Disconnect the sensor cable from the controller board, and then remove the sensor.
4064
