Motor (HCOE diverter) removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.

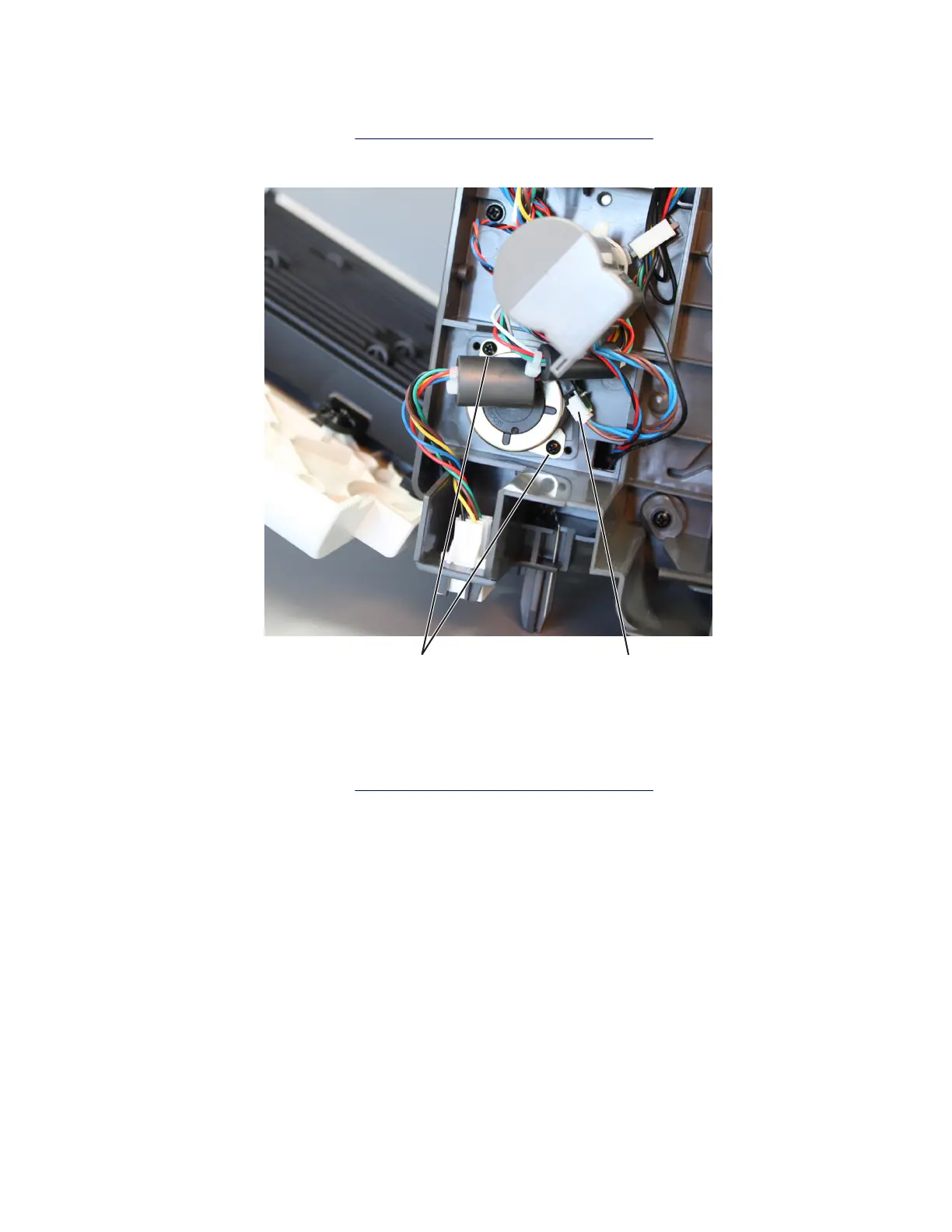

2 Disconnect the cable (A), and then remove the two screws (B).
AB
3 Remove the motor.
Sensor (HCOE bin) removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
2 Release the latches (A), and then release the sensor.
4064
