Lexmark MS821

Motor (SHPF paddle) removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.

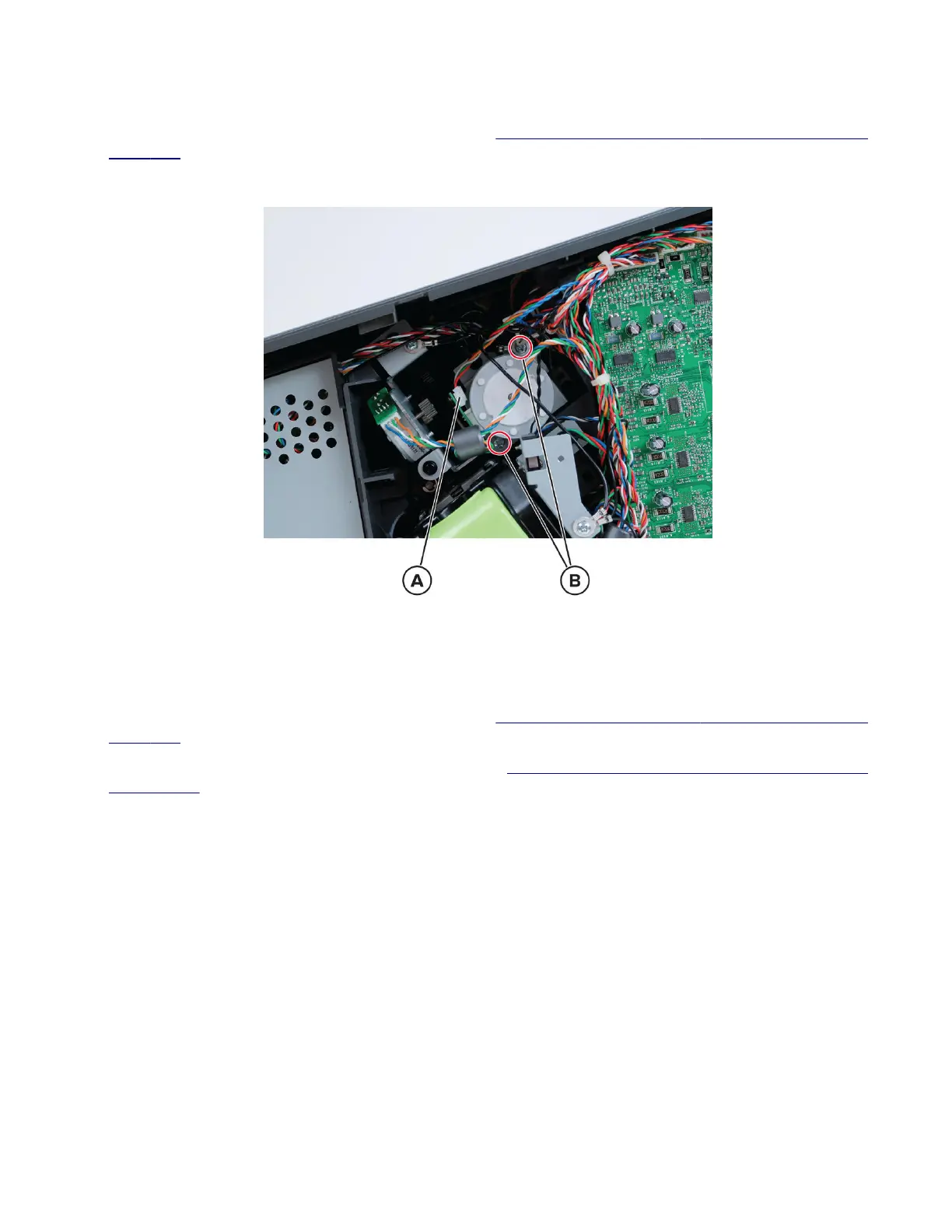

2 Disconnect the cable (A), and then remove the two screws (B).
3 Remove the motor.
SHPF staple cartridge door close limit switch removal
1 Remove the staple, hole punch finisher left cover. See “Staple, hole punch finisher left cover removal” on
page 699.
2 Remove the staple, hole punch finisher right cover. See “Staple, hole punch finisher right cover removal”
on page 701.
