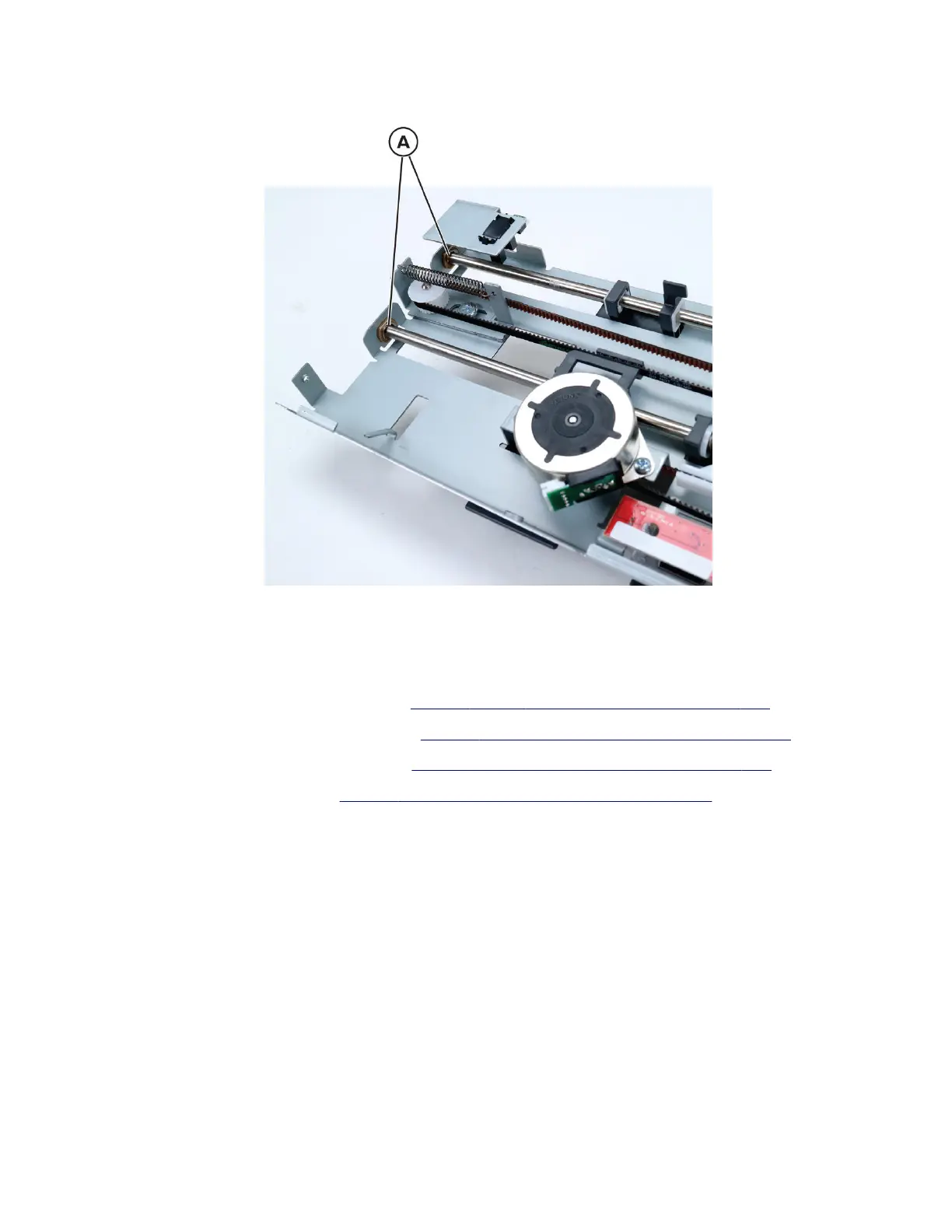

10 Release the tamper belts, remove the two E‑clips (A), and then release the shafts.
11 Slide the tamper aligner
o
its shaft.
Staple finisher stack height assembly removal
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple finisher top cover. See “Staple finisher top cover removal” on page 588.
4 Release the motor bracket. See “Staple finisher paddle gear removal” on page 611.
4064
Parts removal
629
