Staple, hole punch finisher controller board removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.

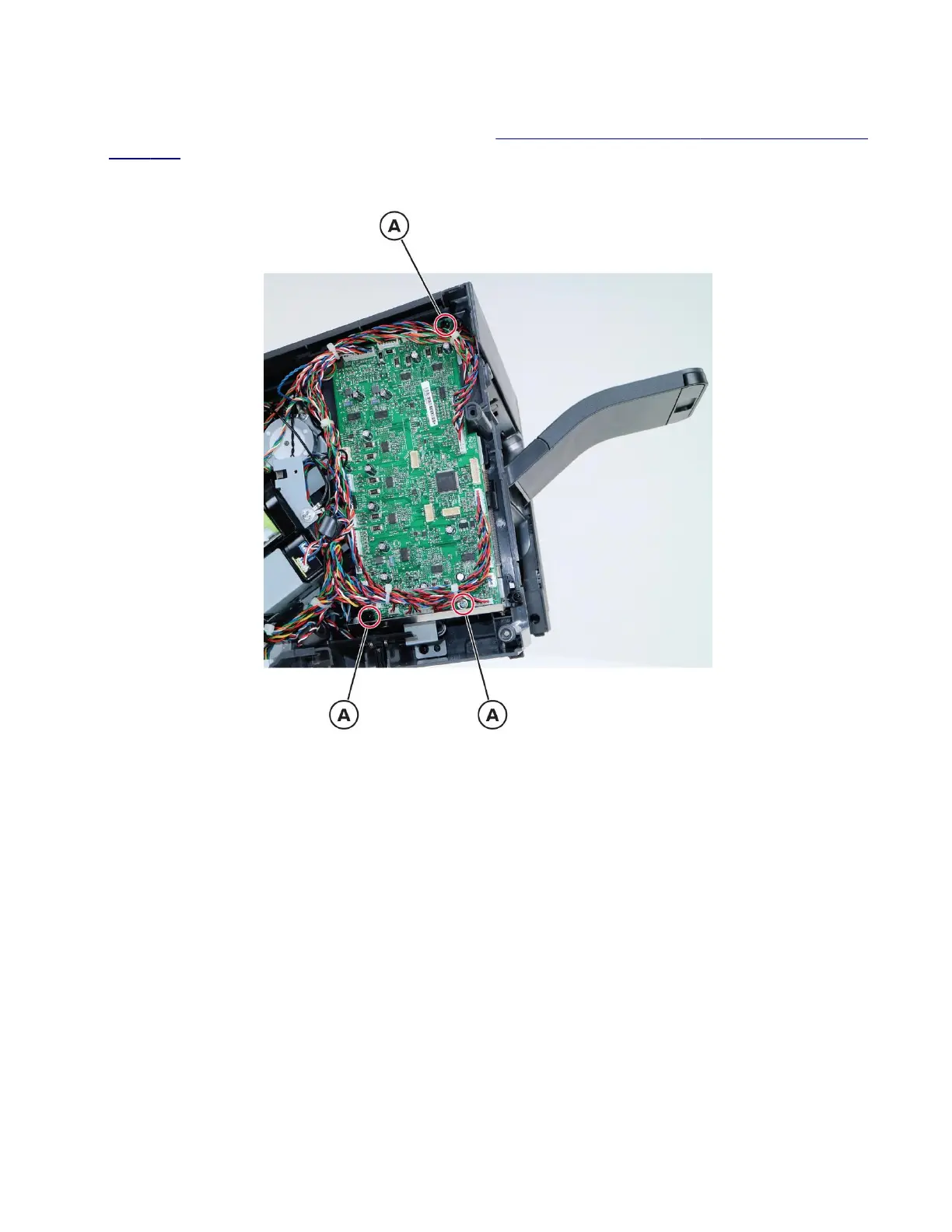

2 Disconnect all the cables from the controller board, and then remove the three screws (A).
3 Remove the board.
4064
Parts removal
705
