Lexmark MS821

Note: Pay attention to the original position of the belts.
Warning—Potential Damage: Do not lose any dislodged washers.

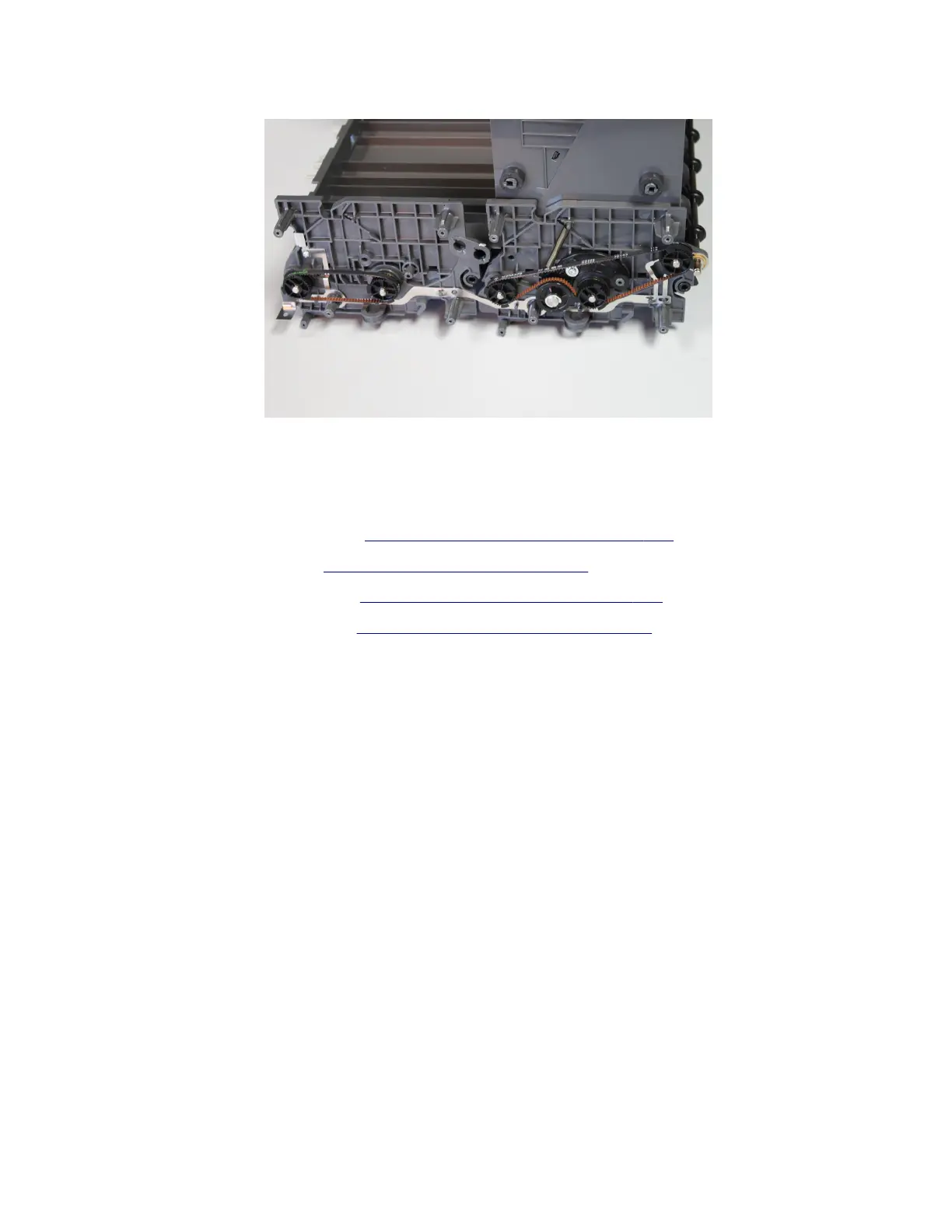

HCOE belt tensioner removal
1 Remove the HCOE right cover. See “HCOE right cover removal” on page 549.
2 Remove the HCOE latch. See “HCOE latch removal” on page 554.
3 Remove the HCOE bin pinion. See “HCOE bin pinion removal” on page 558.
4 Remove the HCOE drive belt. See “HCOE drive belt removal” on page 561.
