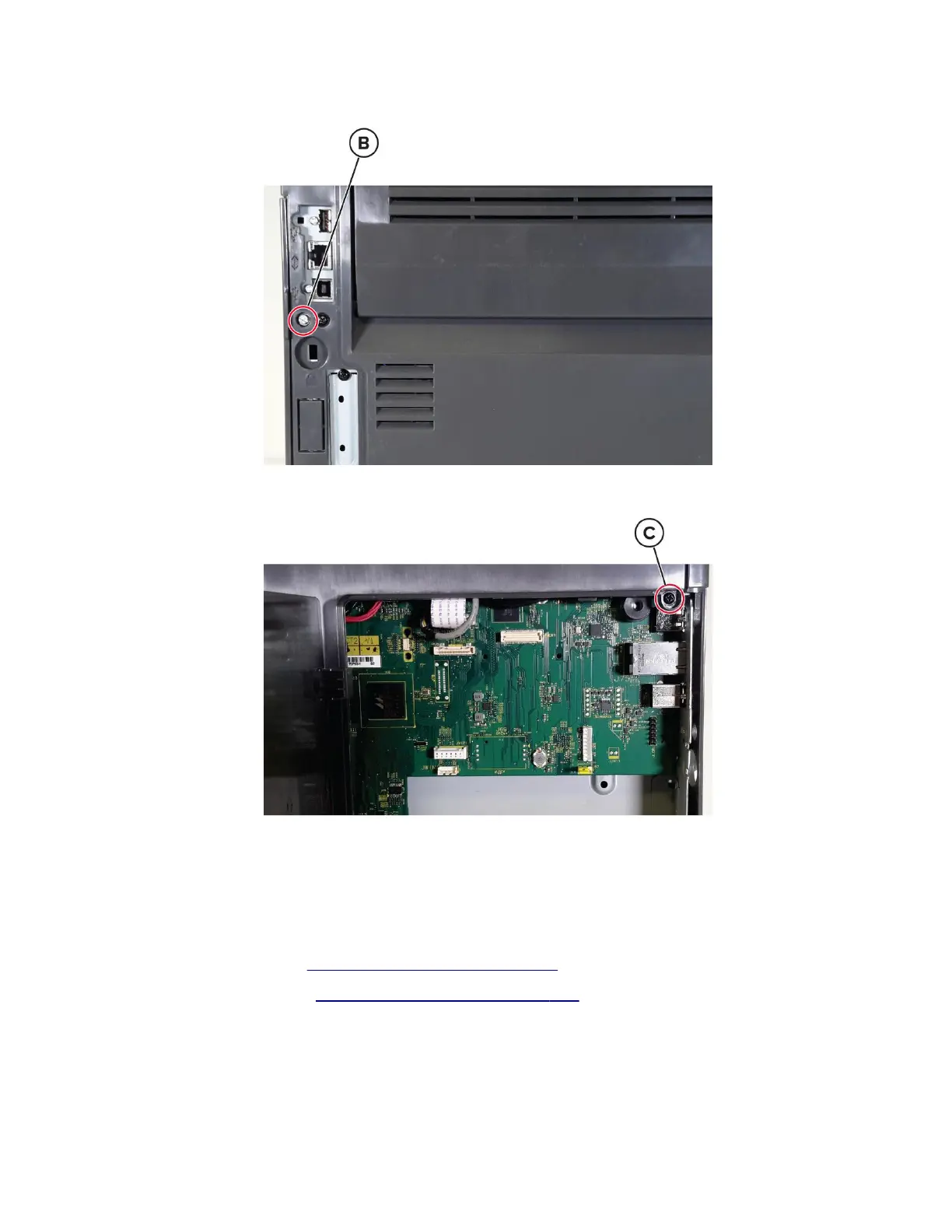

3 From the rear side, remove the screw (B).
4 Open the controller board access door, and then remove the screw (C).
5 Remove the right cover.
HVPS removal
1 Turn
o
the printer, and then unplug the power cord from the electrical outlet.
2 Remove the top cover. See “Top cover removal” on page 455.
3 Remove the right cover. See “Right cover removal” on page 420.
4064
Parts removal
421
