Lexmark MS821

Inner guide deflector removal

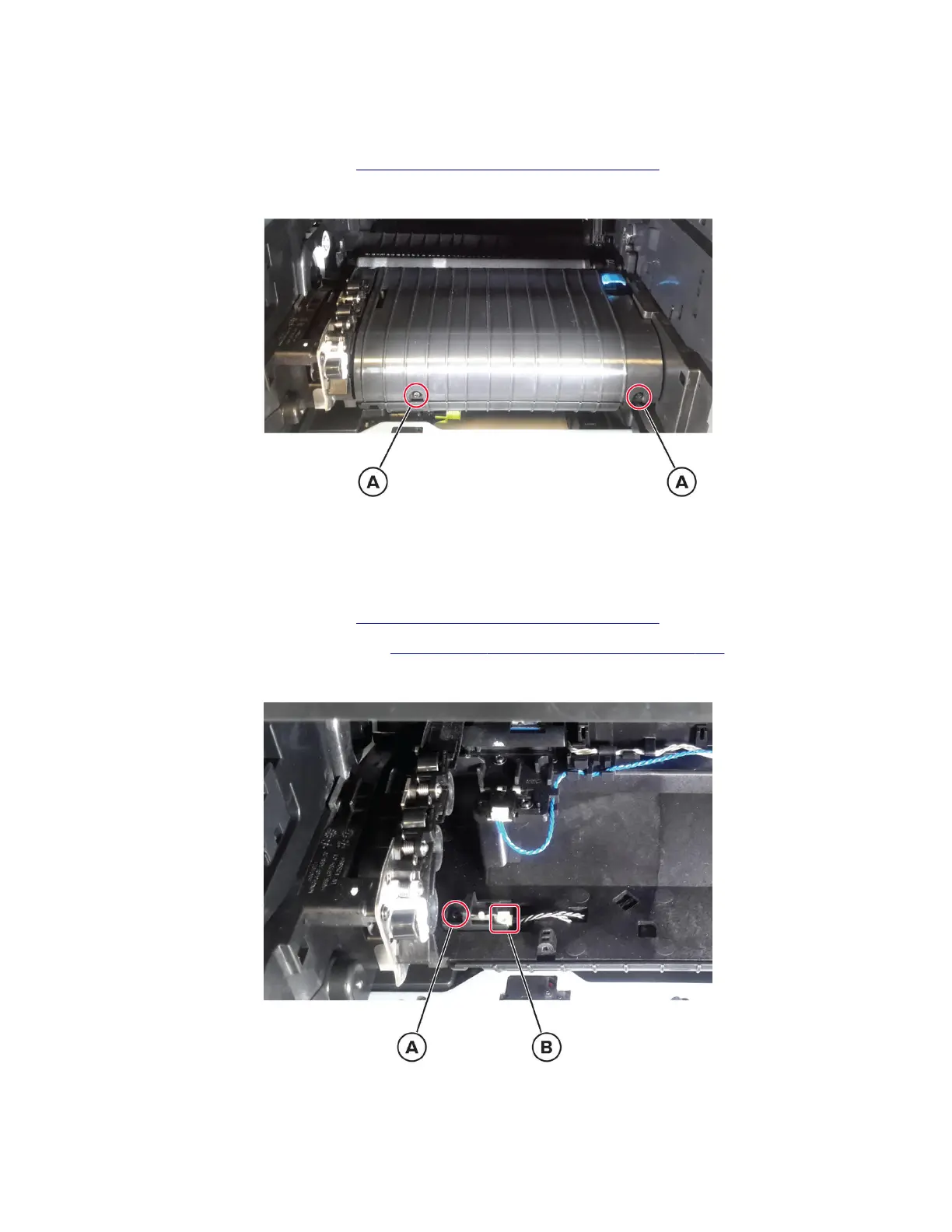

1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the duplex/MPF tray. See “Duplex/MPF tray removal” on page 434.
3 Remove the two screws (A), and then remove the
deflector.
Sensor (duplex interlock) removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the duplex/MPF tray. See “Duplex/MPF tray removal” on page 434.
3 Remove the inner guide deflector. See “Inner guide deflector removal” on page 438.
4 Remove the screw (A), and then disconnect the sensor cable (B).
5 Remove the sensor.
