Lexmark MS821

Staple finisher diverter plunger assembly removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Remove the staple finisher interface cable. See “Staple finisher interface cable removal” on page 595.
3 Release the motor bracket. See “Motor (staple
finisher
transport) removal” on page 599.

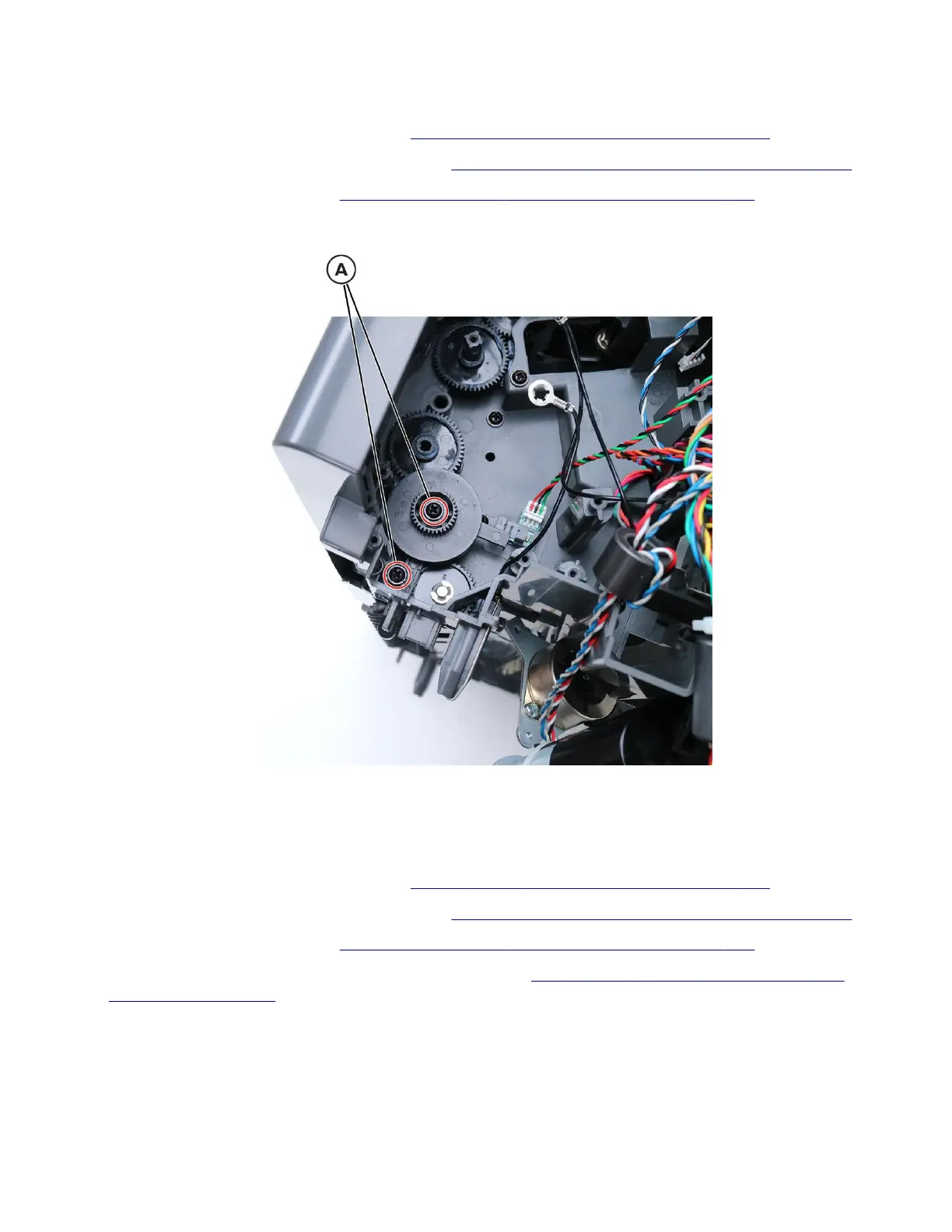

4 Remove the two screws (A).
5 Remove the plunger.
Staple finisher drive gear assembly removal
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher interface cable. See “Staple finisher interface cable removal” on page 595.
3 Release the motor bracket. See “Motor (staple finisher transport) removal” on page 599.
4 Remove the staple finisher diverter plunger assembly. See “Staple finisher diverter plunger assembly
removal” on page 604.
4064
Parts removal
604
