Lexmark MS821

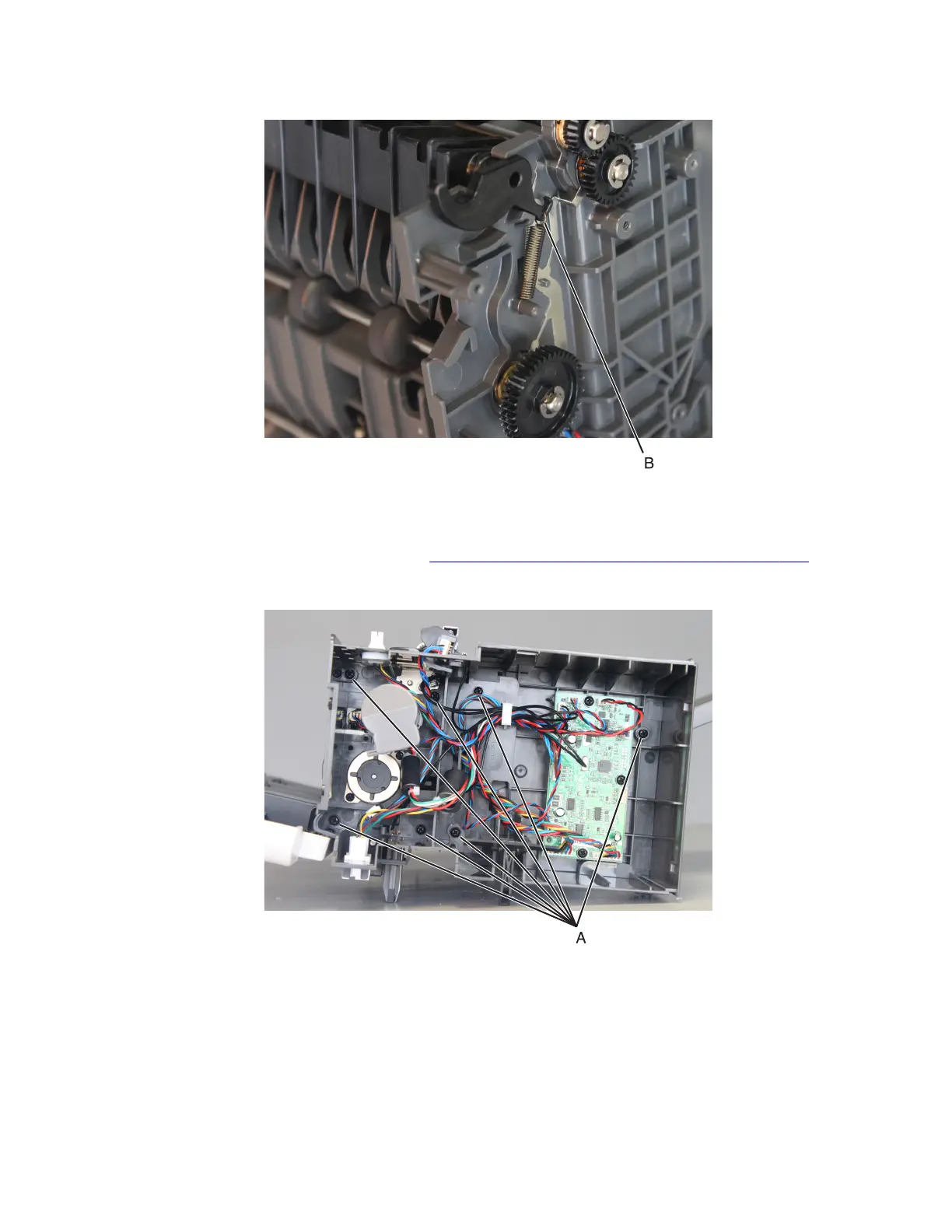

3 Pull away the frame to access the parts underneath. Release the hook (B), and then remove the spring.
Output expander diverter removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A) from the frame.
4064
Parts removal
538
