Tamper aligner removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple
finisher
top cover. See “Staple
finisher
top cover removal” on page 588.
4 Disconnect the tamper cables J2, J4, and J6 from the finisher controller board.

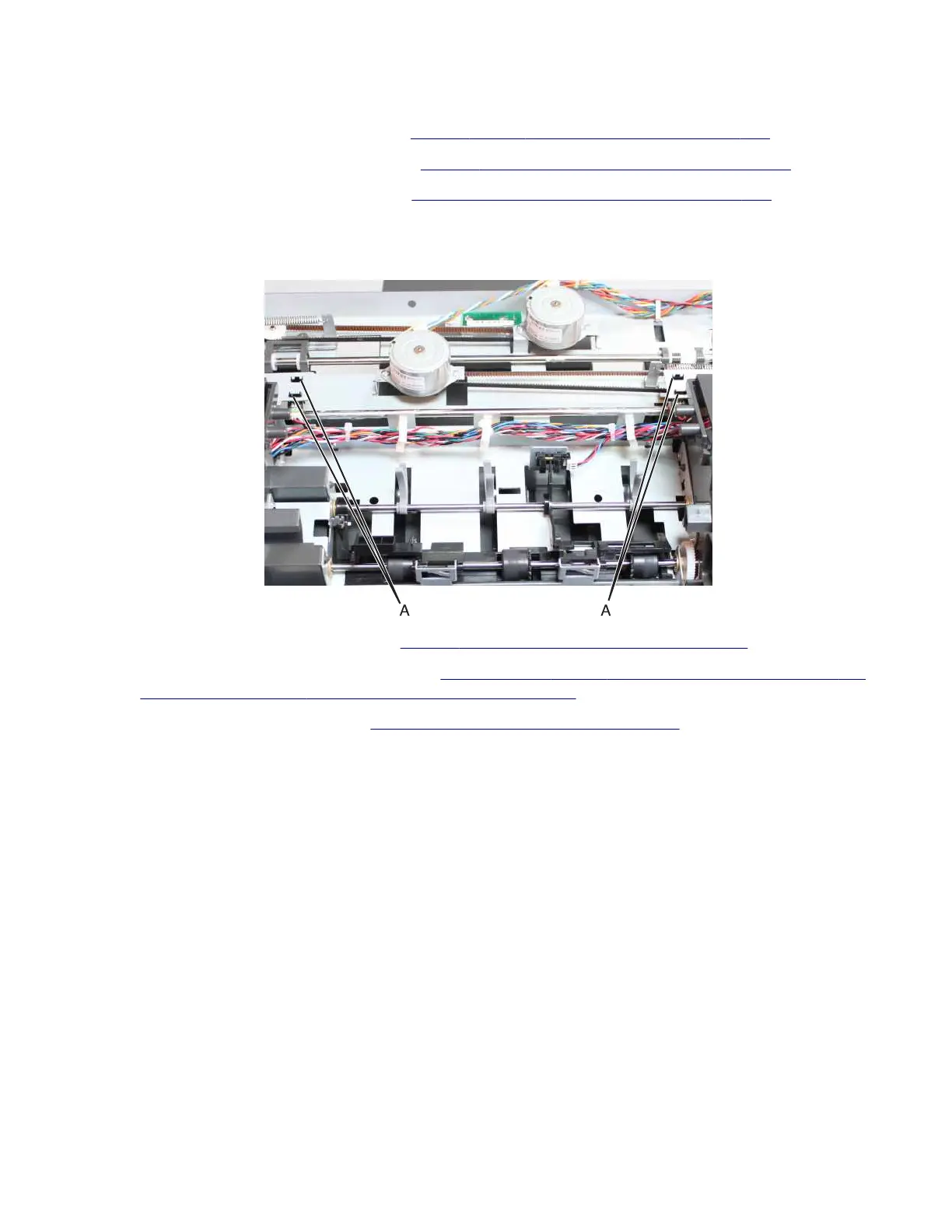

5 Release the latches (A), and then release the sensors.
6 Remove the staple finisher bin LED. See “Staple finisher bin LED removal” on page 625.
7 Remove the left and right tamper motors. See “Motor (staple
finisher
left tamper) removal” on page 619
and
“Motor (staple finisher right tamper) removal” on page 619.
8 Remove the tamper drive belts. See “Tamper drive belt removal” on page 620.
4064
Parts removal
627
