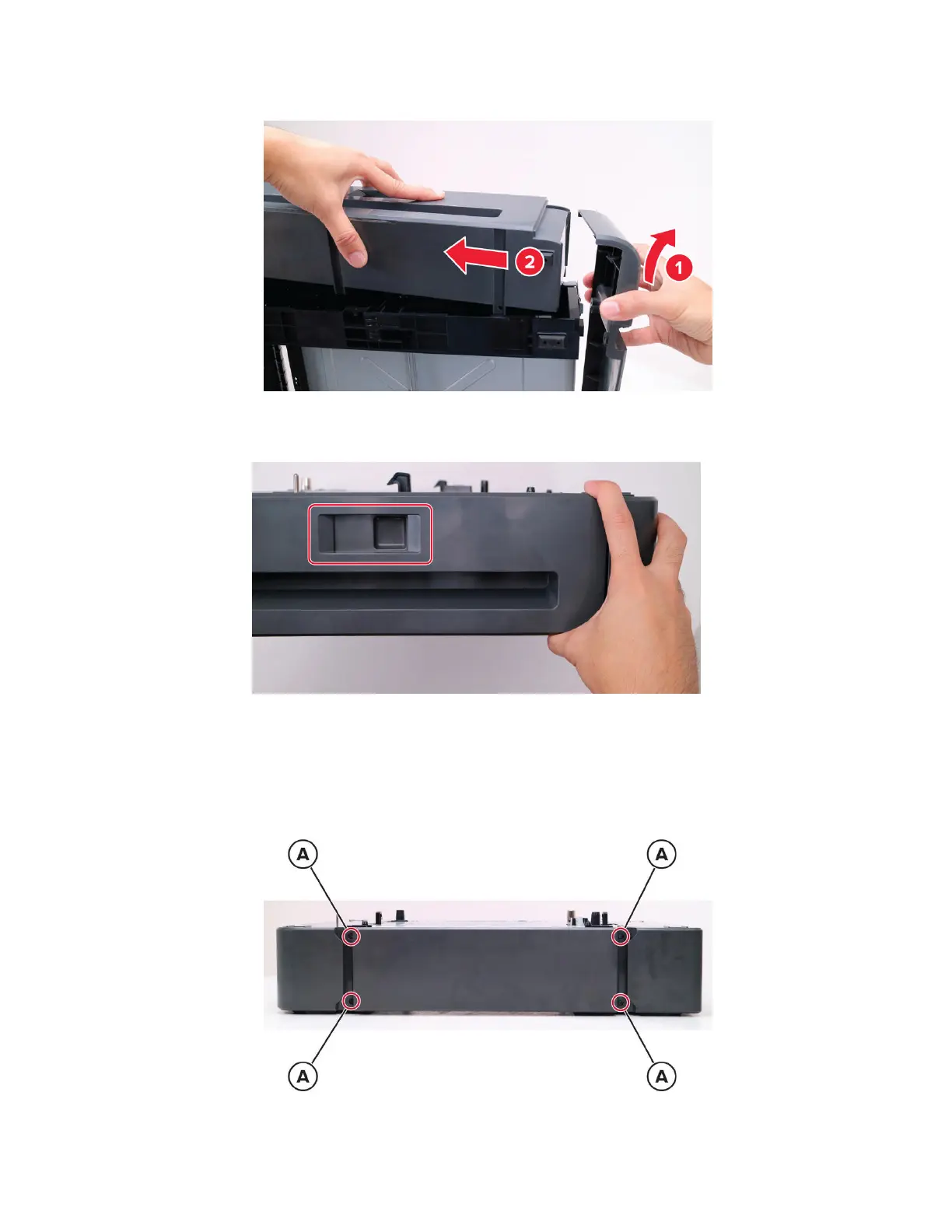

7 Slightly pull the rear cover to release, and then remove the right cover.
Installation note: When installing the right cover, make sure that the latch is positioned as shown. After
installation, make sure that the latch is working.
250‑ and 550-sheet tray rear cover removal
1 Remove the tray insert.
2 Remove the four screws (A), and then remove the cover.
4064
Parts removal
501
